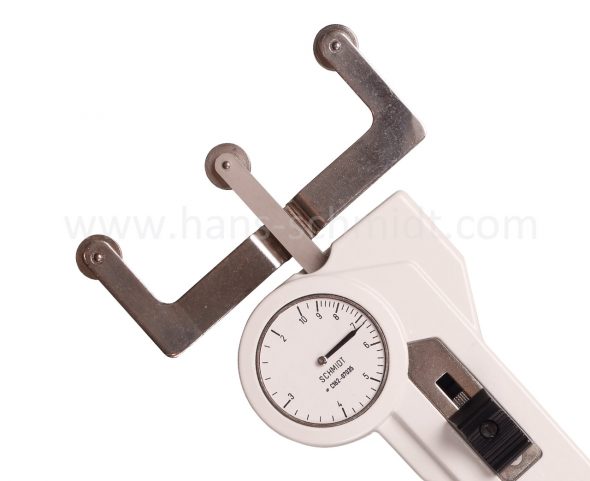

SCHMIDT DXT-10K ເຄື່ອງວັດແທກຄວາມຕຶງຄຽດ (2.5 – 10 daN)
Tension Range*: 2.5 – 10 daN
Measuring Head Width**: 117 mm
Roller Width: 7, 10, 15, 20, 30 mm
Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See dimensions
Weight, net (gross): Approx. 520 g (1300 g)
Other tension ranges, measuring head widths and material path calibrations available on request.
Other units of measure available – g or kg.
* SCHMIDT calibration horizontal lying; material textile ribbon or film, depending on tension range and roller width
** Outer distance between outside guide rollers
Delivery Includes: carrying case, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
