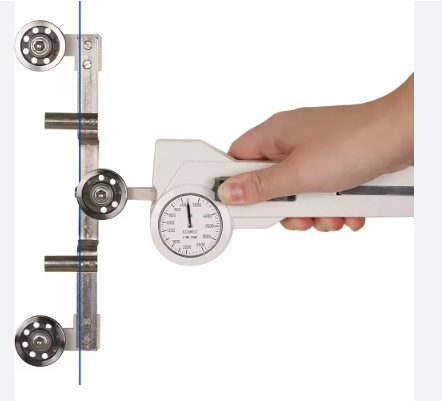

SCHMIDT DXL-5000 ເຄື່ອງວັດແທກຄວາມຕຶງຄຽດ (400 – 5000 cN)
Measuring Range: 400 – 5000 cN
Measuring Head Width*: 235 mm
SCHMIDT Calibration Material: customer sample or Schmidt sample Ø 2.3 mm
Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See Dimensions
Weight, net (gross) Approx. 640 g (1100 g)
Other tension ranges and measuring head widths are available on request.
Other units of measure available – g and kg.
* Outer distance between outside guide rollers
Delivery Includes: carrying case, operating instruction in German or English (as requested), Certificate of compliance with the order 2.1 according EN 10204 free of charge
