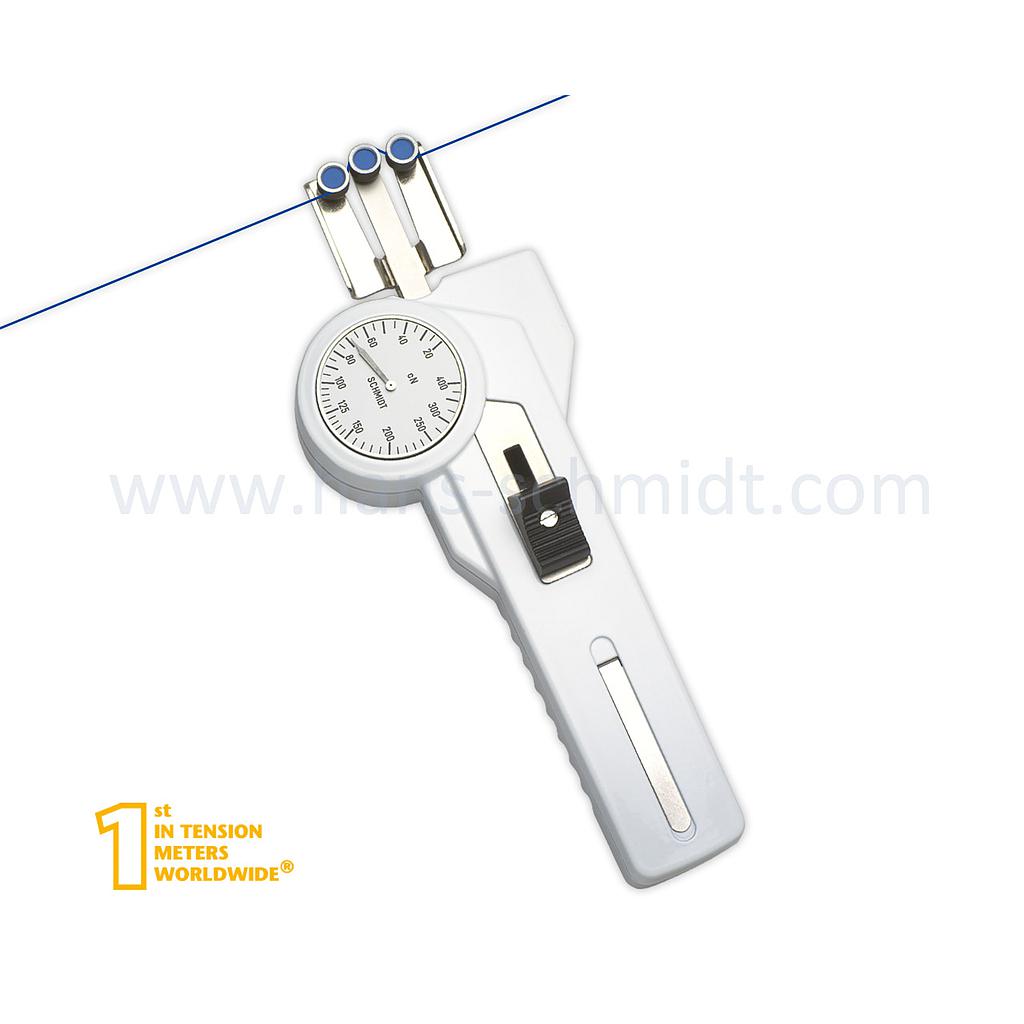

SCHMIDT DXE-2000 ເຄື່ອງວັດແທກຄວາມຕຶງຄຽດ (200 – 2000 cN)
Measuring Range: 200 – 2000 cN
Measuring Head Width* X: 36 mm
Measuring Head Length Y: 47 mm
SCHMIDT Calibration Material**: PA: 0.50 mm Ø
Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Dimensions: See dimensions
Weight, net (gross): Approx. 470 g (1000 g)
Other tension ranges available on request.
Other units of measure available, such as g.
* Width of bracket assembly
** Suitable for 95 % of applications – PA = Polyamide Monofilament
Delivery Includes: carrying case, operating instruction in German or English (as requested), Certificate of compliance with the order 2.1 according EN 10204 free of charge
