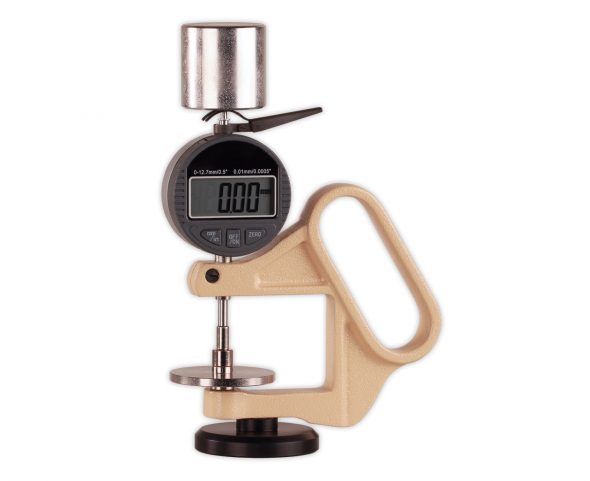

SCHMIDT DD-50-T ເຄື່ອງວັດແທກຄວາມໜາ (0 – 10 mm/ 0.4 Inch)

Standard: similar to DIN EN ISO 5084

Measuring Range: 0 – 10 mm/ 0.4 Inch

Depth of jaw: 50 mm

Application: Textiles and Non-woven textiles

Feeler (Ø in mm): 50.42

Feeler (cm²): 20

Pressure: 1 kPA

Measuring range: 0 – 10 mm / 0 – 0.4 inch (option 0 – 25 mm / 0 – 1 inch)

Resolution: 0.01 mm / 0.0005 inch

Depth of jaw: 50 mm

Display: LCD 4 digit, 8 mm high

Data output: USB

Dimensions: 103 x 65 x 145 mm (LxWxH)

Weight, net (gross): Approx. 500 g (1100 g)

Special Features

Thickness gauge DD-50 features an easy to read digital display along with the high accuracy

The thickness gauge is available with  different feelers and measuring pressure according the material to be used

Big foot for on table operation

Standard measuring range up to 10 mm; optional 25 mm (code E) is available

USB interface for data transfer to PC

Opening by lifting device (lever) – self closing thickness gauge DD-50
