SCHMIDT DD-300-T ເຄື່ອງວັດແທກຄວາມໜາ (0 – 10 mm/ 0.4 Inch)

Standard: similar to DIN EN ISO 5084

Measuring Range: 0 – 10 mm/ 0.4 Inch

Depth of jaw: 300 mm

Application: Textiles and Non-woven textiles

Feeler (Ø in mm): 50.42

Feeler (cm²): 20

Pressure: 1 kPA

Measuring range: 0 – 10 mm / 0 – 0.4 inch (option 0 – 25 mm / 0 – 1 inch)

Resolution: 0.01 mm / 0.0005 inch

Depth of jaw: 300 mm

Display: LCD 4 digit, 8 mm high

Weight, net (gross): Approx. 1050 g (1350 g)

Special Features

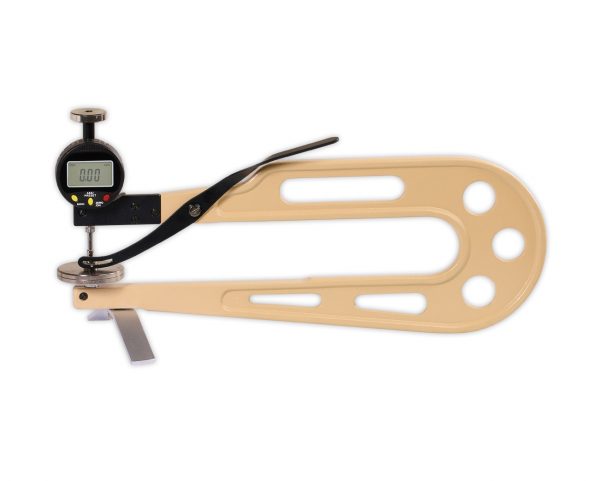

Thickness gauge DD-300 features an easy to read digital display along with the high accuracy

The thickness gauge is available with  different feelers and measuring pressure according the material to be used

Standard measuring range up to 10 mm; optional 25 mm (code E) is available

The instrument is equipped  with a  swing-out foot for on-table operation

USB interface for data transfer to PC

Opening by lifting device (lever) – self closing thickness gauge DD-300
