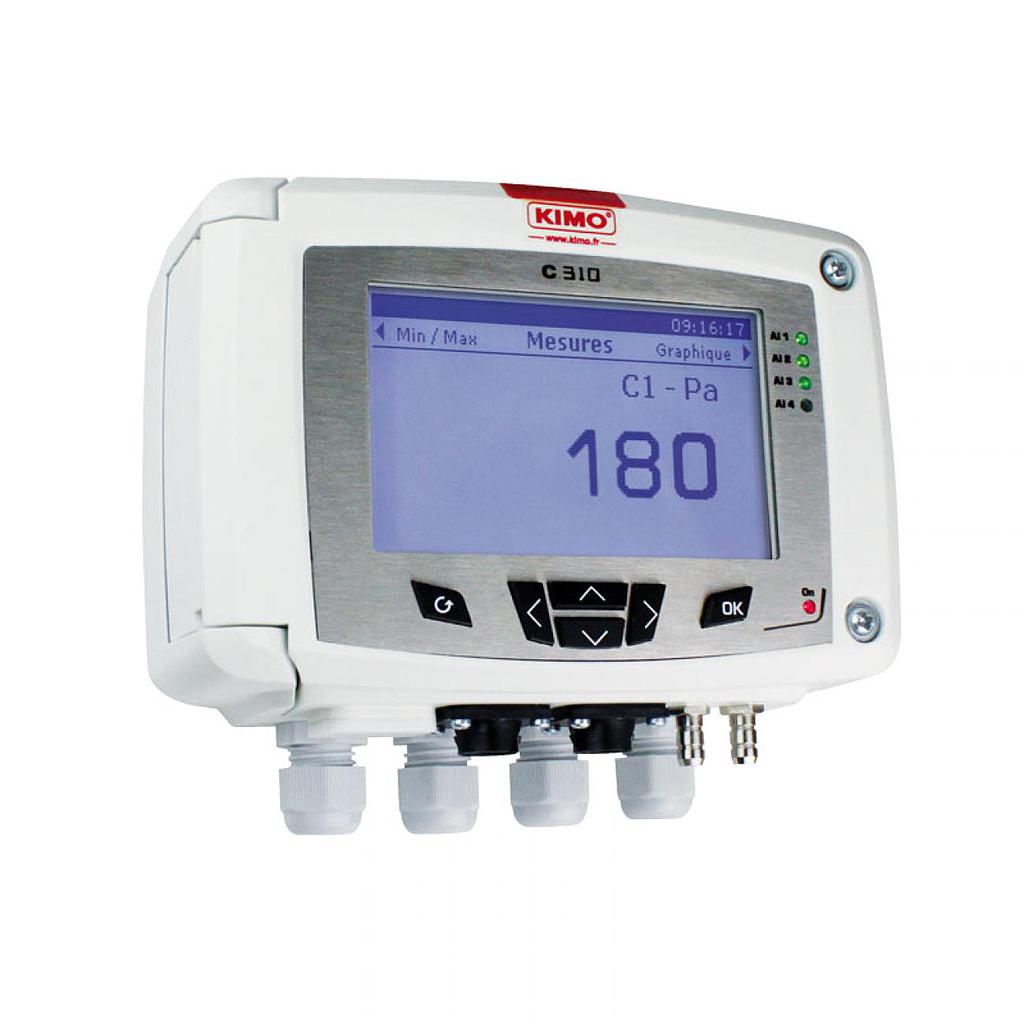

Sauermann C310-BO Multifunction Transmitter (include SQR/3)

Units: °C, % RH, Pa, ppm, m/s, hPa, m³/h

Alarm: 4 visual (dual-color LEDs) and audible alarms

Parameters: Air velocity, Airflow, Atmospheric pressure, CO, CO2, Differential pressure, Humidity, Temperature

Displays: 4-line display

IP Protection: IP 65

Standards

2011/65/EU RoHS II

2012/19/EU WEEE

2014/30/EU EMC

2014/35/EU Low Voltage

Power supply: 24 Vac/Vdc or 115-230 Vac (Active)

Outputs: 2 x 0/4-20 mA or 2 x 0-5/10 V (4 wires)

Relay: Four RCR relays (option)

Dimensions (LxWxH): 158 x 81 x 111 mm

Weight: 700 g

Operating temperature: -10.00°C - 50.00°C

Storage temperature: -10.00°C - 70.00 °C
