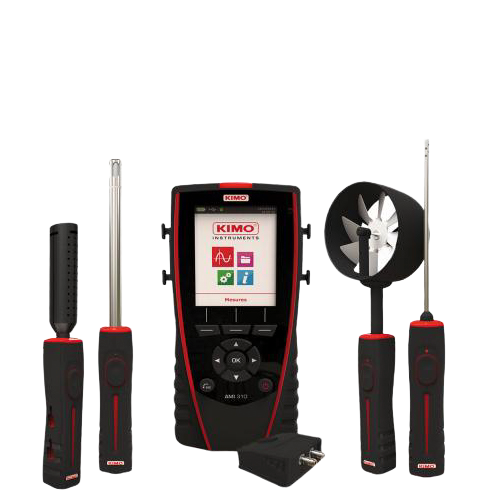

Sauermann AMI310 Measurement Air Environments Parameters

- AMI 310 measures, records up to 500 campaigns of 20000 points a day on a SD card and can restaure on PC via USB until 6 simultaneous parameters according to the applications: Pressure, Temperature (Pt100 and thermocouple), Humidity, Air Quality ( CO / CO2), Air Velocity and Airflow (vane probes and hotwire), Tachometry.

- Precise and friendly, AMI 310 have a big color display to simplify the navigation in menus.

- A Li-ion rechargeable battery (via sector or USB), gets an autonomy of 16 hours with the pressure module.

- All probes and modules of our new range are compatible with AMI 310 and are automatically recognized by the device (SMART 2014 system)

- AMI 310 can easily be transformed into micromanometer, thermo-hygrometer, co-meter or thermometer.

- Measure probes:

+ Pressure module

+ Hotwire

+ Vane probe Ø 70 and 100 mm

+ Vane probe Ø 14 mm

+ Hygrometry / Temperature probe

+ K,J,T class1 thermocouple probes

+ Pt100 Smart-plus probe

+ Climatic conditions module

+ Air quality probes

+ Multifunction probe

+ Omnidirectionnal probe

+ Tachometry probe

+ Gas leak probe

The AMI 310 is proposed according to differencial modules :

- AMI 310 : Only portable instrument

- AMI 310 CLA : portable instrument supplied with an ABS hygrometry probe, an hotwire probe and a Ø70 mm vane probe

- AMI 310 STD : portable instrument supplied with ±10000 Pa pressure module, a Ø6 mm Pitot tube, 2 x 1 m of silicone tube, a stainless steel tip,

an ABS hygrometry probe, an hotwire probe and a Ø100 mm vane probe

- AMI 310 PRO : portable instrument supplied with a ±500 Pa pressure module, a Ø6 mm Pitot tube, 2 x 1 m of silicone tube, a stainless steel tip, a stainless steel hygrometry probe, a telescopic hotwire probe and a telescopic Ø100 mm vane probe

- AMI 310 CRF : portable instrument supplied with a wireless ABS hygrometry probe, an hotwire probe and a wireless Ø70 mm vane probe

- AMI 310 SRF : portable instrument supplied with ±10000 Pa pressure module, a Ø6 mm Pitot tube, 2 x 1 m of silicone tube, a stainless steel tip, a wireless ABS hygrometry probe, an hotwire probe and a wireless Ø100 mm vane probe

- AMI 310 PRF : portable instrument supplied with a ±500 Pa pressure module, a Ø6 mm T Pitot tube, 2 x 1 m of silicone tube, a stainless steel tip, a wireless stainless steel hygrometry probe, a telescopic hotwire probe and a Ø100 mm vane probe

- AMI 310 SK : portable supplied with a ±500 Pa pressure module, a telescopic hotwire probe with gooseneck, a Ø6 mm Pitot tube, 2 x 1 m of silicone tube, a stainless steel tip

- Connections : 2 mini-DIN connections SMART-2014 probes and 1 micro-USB port for charging and PC connection

- Power supply : Lithium-Ion battery

- Autonomy : 59 h with pressure module

- Memory capacity : Up to 1000 dataset of 20 000 points

- Conditions of use : From 0 to +50 °C

- Storage temperature : From -20 to +80 °C

- Auto shut-off : Adjustable from 15 to 120 minutes or Off

- Weight : 485 g

- European directives : 2004/108/EC EMC ; 2006/95/EC Low Voltage ; 2011/65/EU RoHS II ; 2012/19/EU WEEE

- Languages : French, English, Dutch, German, Italian, Portuguese, Swedish, Norwegian, Finn, Danish, Chinese, Japanese

- Protection : IP54

- Display : LCD 120 x 160 px, dimension : 58 x 76 mm

- Backlight

- Key pad : 10 keys
Supplied with : AMI310, cable mini DIN, pin Lithium, micro SD 4GB card, manual, transport case
