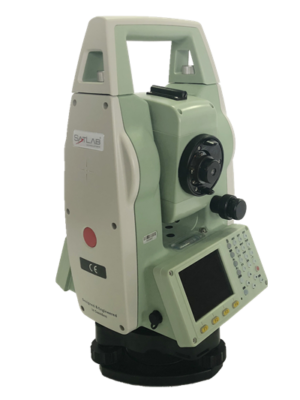

SATLAB SLT2 ສະຖານີທັງໝົດ (Độ chính xác: 2”)
ANGLE MEASUREMENT
Minimum Readout
: 1” (0.3 mgon), 5” (1.5 mgon), 10” (3 mgon)
Method: Absolute encoding
Accuracy: 2”
Compensator System: Dual-axis
Compensator Range: ±3’
Compensator Setting Accuracy: 1”
DISTANCE MEASUREMENT WITH REFLECTOR
Single Prism: 3,000m
Three Prisms; 5,000m
Reflective Sheet: 800m
Accuracy: 2mm + 1.5ppm
Measuring Time: fine
Quick
Tracking 0.5s
DISTANCE MEASUREMENT WITHOUT REFLECTOR
Range: 800m
Single Prism: > 7,500m
Accuracy: 3mm + 2ppm
Measuring Time: 1.5s
TELESCOPE
Magnification: 30x
Image: Erect
Field of View: 1°20’ (2.4m at 100m)
Min. Focusing Range: 1.5m
Reticle: Illuminated
Effective Diameter of Objective: 40mm/50mm (EDM)
Resolving Power: 3”
Environmental: -20°C to 50°C Operating
-40°C to 70°C Storage
Weight: ≤5.5kg (12lb) including battery
Battery: 7.4VDC / 3000 mAH
Operation: Optimally 18 hours
