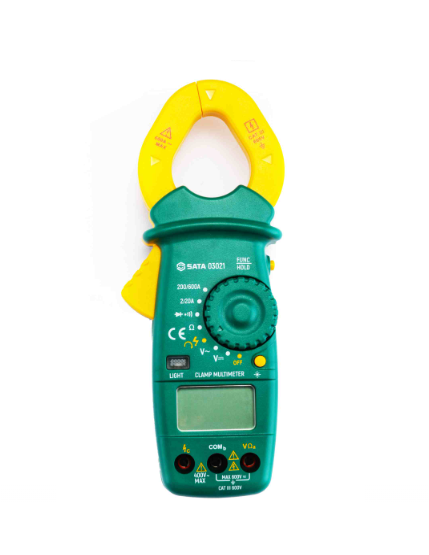

SATA 03021 Digital Clamp Multimeter (600A , 600V)

Security Level: CAT IV 600V

Maximum reading value: 1999

DC voltage:

Range: 200mV / Resolution: 0.1mV / Accuracy: ±(0.5%+5)

Range: 2V / Resolution: 1mV / Accuracy: ±(0.8%+5)

Range: 20V / Resolution: 10mV / Accuracy: ±( 0.8%+5)

Range: 200V / Resolution: 100mV / Accuracy: ±(0.8%+5)

Range: 600V / Resolution: 1V / Accuracy: ±(0.8%+5)

AC voltage:

Range: 2V / Resolution: 1mV / Accuracy: ±(1.2%+5)

Range: 20V / Resolution: 10mV / Accuracy: ±(1.2%+5)

Range: 200V / Resolution: 100mV / Accuracy: ±(1.2 %+5)

Range: 600V / Resolution: 1V / Accuracy: ±(1.5%+5)

Alternating current

Range: 2A / Resolution: 0.001A / Accuracy: ±(6%+20) ≤ 0.4A / ±(5%+10)

Range: 20A / Resolution: 0.01A / Accuracy: ±(4%+10) ≤ 0.4A / ±(3%+8)

Range: 200A / Resolution: 0.1A / Accuracy: ±(2.5%+5)

Range: 600A / Resolution: 1A / Accuracy: ±(2.5%+5)

Resistance

Range: 200Ω / Resolution: 0.1Ω / Accuracy: ±(1.2%+5)

Range: 2kΩ / Resolution: 1Ω / Accuracy: ±(1%+5)

Range: 20kΩ / Resolution: 10Ω / Accuracy: ±( 1%+5)

Range: 200kΩ / Resolution: 100Ω / Accuracy: ±(1%+5)

Range: 2MΩ / Resolution: 1KΩ / Accuracy: ±(1.2%+5)

Range: 20MΩ / Resolution: 10KΩ / Accuracy: ±(1.5%+5)

Continuity and diode testing:

On-off: resolution 0.1Ω, the buzzer generates a buzzer when the resistance is ≤ about 30Ω.

Diode: resolution 1mV, the screen displays the approximate value of the forward voltage drop of the diode, and the open circuit voltage is about 1.48V

Phase sequence test: Measuring range: 380V±10%, 50Hz / Phase sequence indication: forward phase, reverse phase, missing phase / Phase voltage accuracy: ±2%

Power supply: 1.5V AAA battery 2pcs

Size: 185×74×40mm

Weight: 195g (including battery and case)

●3-1/2-digit LCD, with the maximum reading of 1999

●Main features: AC/DC voltage, AC current, resistance, continuity, diode, phase testing

●A practical measurement tool, with such features as data retention, screen backlight and full-range overload protection
