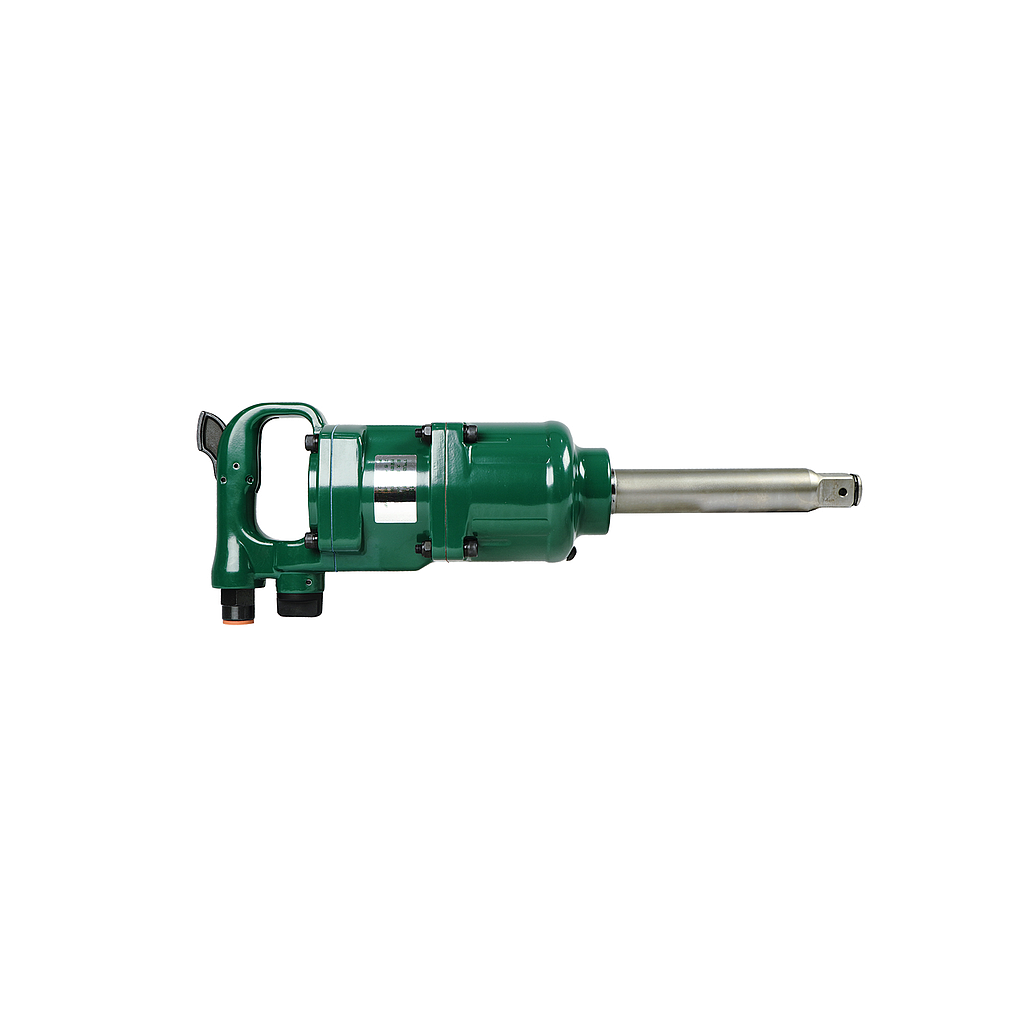

SATA 01132 ທໍ່ສົ່ງຜົນກະທົບທາງອາກາດ 1" (8" Anvil) (2300Nm, 4700Rpm, M33)

Output specifications: 1" square head

Working torque (N·M): 2300

Maximum reverse torque (N·M): 2900

Idle speed (RPM): 4700

Bolt tightening ability: M33

Output shaft length: 8"

Average air consumption (CFM): 16

Noise level dB(A): 110

Length(MM): 537

Width (MM): 123.5

High (MM): 176

Net weight (KG): 12.4

Air inlet size: 1/2"

Minimum tracheal inner diameter (MM): 12.5

Working air pressure (KGF/CM2): 8

● Maximum output torque of 2900 N·m, maximum bolt tightening capacity of M33 (S50 socket).

● Suitable for the removal and installation of tires of large passenger vehicles as well as the removal, installation and repair of large mechanical equipment.

● Main parts made through the vacuum thermal treatment and ultra-low temperature quenching, featuring high hardness, toughness and wear resistance and long service life.

● Easy and flexible to use, greatly reducing the labor intensity
