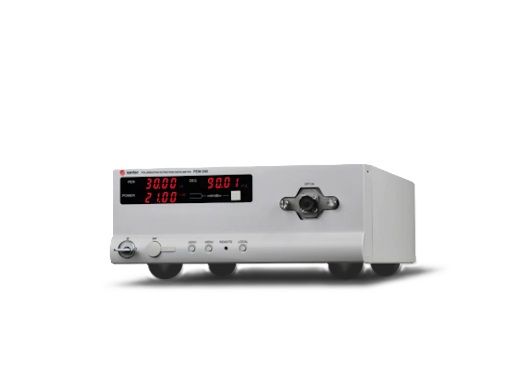

Santec PEM-340 ເຄື່ອງວັດແທກອັດຕາການສູນພັນ Polarization (1260-1630nm)
Applications:
• Alignment of polarization axis of optical devices
• Connectorized PMF patch cord evaluation
• PMF pigtailed laser diodes evaluation
• PM fiber fusion splicing
Features:
• Full band 1260 to 1630 nm
• Simultaneous display of extinction ratio, optical power, and polarization angle
• 50 dB dynamic range for PER measurement
• Wide dynamic input power range:
-40 to +10 dBm / Normal power
-25 to +20 dBm / High power
• Direct PD analog output
• Real-time (up to 10 Hz) measurement
• Interchangeable connectors: FC, SC or LC
Note: Customers are advised to carefully read the Datasheet to select the correct ordering code that meets their usage requirements.
