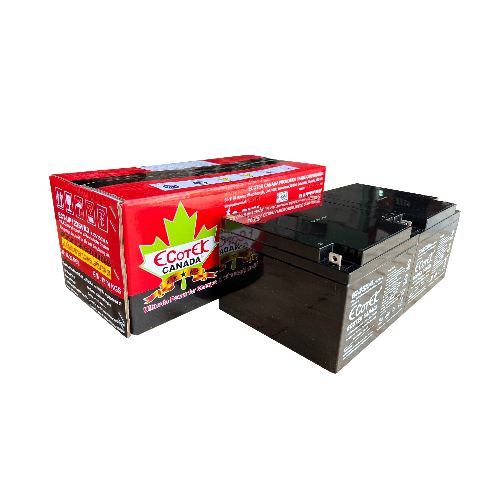

Santak ECT-UP1226VA3 ແບດເຕີຣີ Ecotek (12V, 26Ah)
Nominal Voltage(V): 12V
Nominal Capacity
20 hour rate (1.3A to 10.50V): 26Ah
10 hour rate (2.47A to 10.50V): 24.7Ah
5 hour rate (4.42A to 10.20V): 22.1Ah
1C (26A to 9.60V): 14.73 Ah
3C (78A to 9.60V): 10.4 Ah
Weight: Approx. 9.3 kg
Internal Resistance (at 1KHz): Approx. 9.5mΩ
Maximum Discharge Current for 5 seconds: 390A
Design life: 3-5 years
Case Material: ABS - Flame retardant rating of UL94 HB
Option: UL94 V-0
Terminal: F3
Charging Methods at 25°C (77°F)
Cycle use:
Charging Voltage: 14.4 to 15.0V
Coefficient -5.0mV/ C/cell
Maximum Charging Current: 7.8A
Standby use:
Float Charging Voltage: 13.50 to 13.80V
Coefficient -3.0mV/ C/cell
Operating Temperature Range
Charge: -15°C(5°F) to 40°C(104°F)
Discharge: -15°C(5°F) to 50°C(122°F)
Storage: -15°C(5°F) to 40°C(104°F)
Charge Retention (shelf life) at 20°C (68°F)
1 month: 92%
3 month: 90%
6 month: 80%
