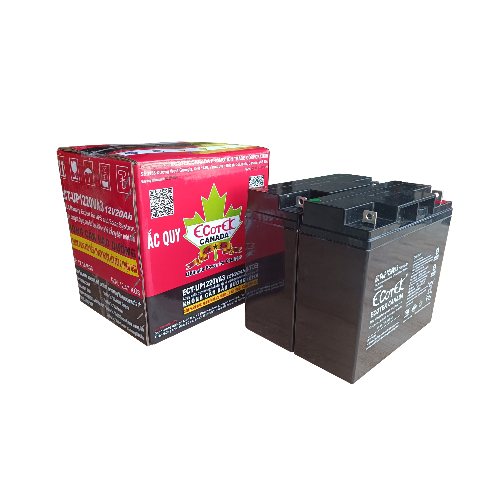

Santak ECT-UP1220VA3 ແບດເຕີຣີ Ecotek (12V, 20Ah)
Nominal Voltage(V): 12V
Nominal Capacity
20 hour rate (1A đến 10.50V): 20Ah
10 hour rate (1.9A đến 10.50V): 19Ah
5 hour rate (3.4A đến 10.20V): 17Ah
1C (20A đến 9.60V): 12.67Ah
3C (60A đến 9.60V): 8Ah
Weight: Approx. 5.95 kg
Internal Resistance (at 1KHz): Approx. 10mΩ
Maximum Discharge Current for 5 seconds: 300A
Design life: 3-5 years
Case Material: ABS - Flame retardant rating of UL94 HB
Option: UL94 V-0
Terminal: F3
Charging Methods at 25°C (77°F)
Cycle use:
Charging Voltage: 14.4 to 15.0V
Coefficient -5.0mV/ C/cell
Maximum Charging Current: 6A
Standby use:
Float Charging Voltage: 13.50 to 13.80V
Coefficient -3.0mV/ C/cell
Operating Temperature Range
Charge: -15°C(5°F) to 40°C(104°F)
Discharge: -15°C(5°F) to 50°C(122°F)
Storage: -15°C(5°F) to 40°C(104°F)
Charge Retention (shelf life) at 20°C (68°F)
1 month: 92%
3 month: 90%
6 month: 80%
