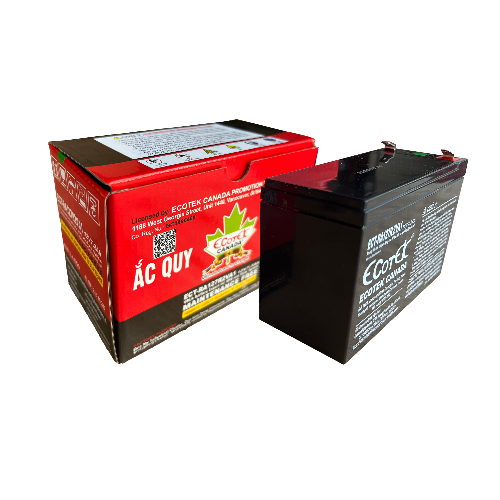

Santak ECT-RA129VA2 ແບດເຕີຣີ Ecotek (12V, 9Ah)
Nominal Voltage(V): 12V
Nominal Capacity
15 mins rate (216W to 9.60V): 54Wh
20 hour rate (0.451A to 10.50V): 9Ah
5 hour rate (1.53A to 10.20V): 7.65Ah
1C (9A to 9.60V): 5.7Ah
3C (27A to 9.60V): 3.6Ah
Weight: Approx. 2.7 kg
Internal Resistance (at 1KHz): Approx. 14mΩ
Maximum Discharge Current for 5 seconds: 135A
Design life: 3-5 years
Case Material: ABS - Flame retardant rating of UL94 HB
Option: UL94 V-0
Terminal: F1 or F2 (Faston Tab 187 or 250)
Charging Methods at 25°C (77°F)
Cycle use:
Charging Voltage: 14.4 to 15.0V
Coefficient -5.0mV/ C/cell
Maximum Charging Current: 2.7A
Standby use:
Float Charging Voltage: 13.50 to 13.80V
Coefficient -3.0mV/ C/cell
Operating Temperature Range
Charge: -15°C(5°F) to 40°C(104°F)
Discharge: -15°C(5°F) to 50°C(122°F)
Storage: -15°C(5°F) to 40°C(104°F)
Charge Retention (shelf life) at 20°C (68°F)
1 month: 92%
3 month: 90%
6 month: 80%
