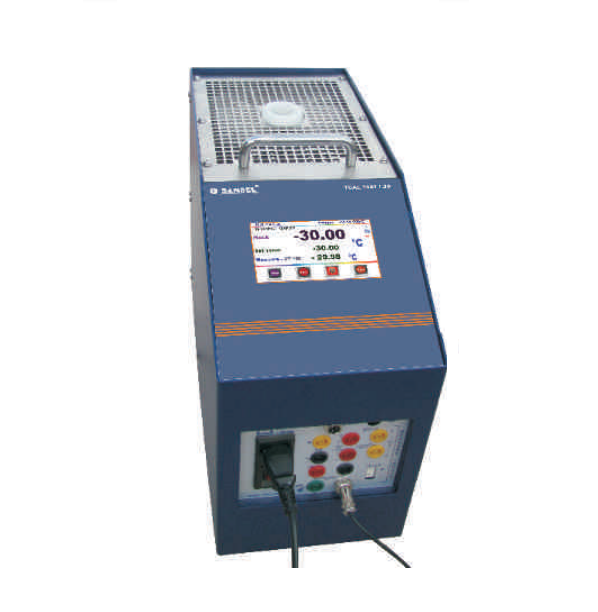

Sansel TCAL 1501/-30 Dry Block Temperature Calibrator (-30~100°C; 0.01°C)

Range: - 30~100°C at amb. 25°C

Resolution: 0.01°C

Uniformity: ±0.2°C

Stability: ±0.02°C

Heating time: 20 mins (Amb. ~100°C)

Cooling time: 25 mins (25~ -30°C) (100~Amb.)

Time to stabilize:10 mins

Well dimension (dia. x depth): 22.5 x 120 mm

Standard Well Holes: 5.2, 6.2, 6.2 mm

Power consumption: 500 VA

Dimension (LxWxH): 409 x 178 x 357 mm

Weight (without well insert): ~12.5 kg

Display: 4.3 inch True TFT DISPLAY with touch screen

Measure inputs: (optional) RTD- PT 100, PT 1000 /TC - J , K , R , S, T , B , N /mA/mV/Ohms

Switch test: Provided on front panel

Power supply: 110V or 230V; AC 50/60 Hz
