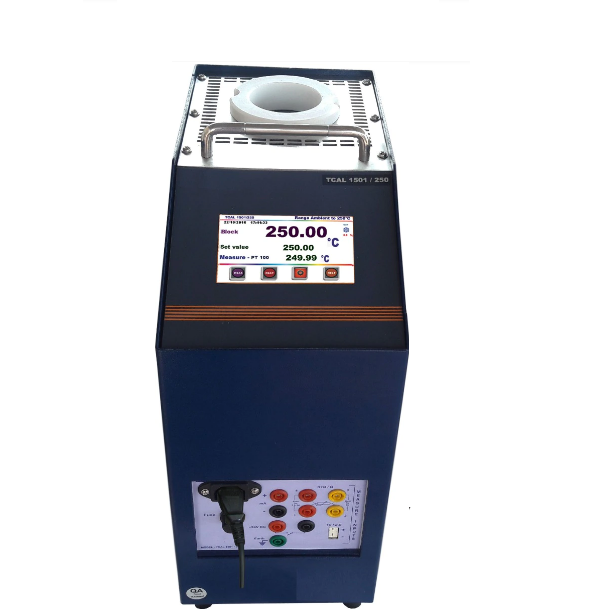

Sansel TCAL 1501/250 ເຄື່ອງປັບອຸນຫະພູມຂອງແຫຼວ (~250°C; 0.01°C; >±0.3°C)

Display: 4.3 inch true TFT display with touch screen

Temperature range: Ambient ~ 250°C

Resolution: 0.01 °C

Stability: ± 0.03 °C

Accuracy: better than ±0.3°C

Uniformity: ±0.1°C

Cooling time: 90mins (Amb. ~ 250°C)

Heating time: 60 mins (250 to 50 ºC )

Time to stabilize: 45 mins

Temperature medium: Silicon oil (200cs recommended)

Chamber dimension: 60 mm dia x 140 mm depth

Measure inputs: RTD-PT 50,PT 100,PT500,PT1000 / TC -J, K, R,S,T,E,B,N/mA/mV/ ohms

Dimension (L*W*H): Approx. 340x 125x 425 mm

Weight: Approx 12 kg (without oil)

Power consumption: 1800 VA

PC interface: RS 485 (Optional)
