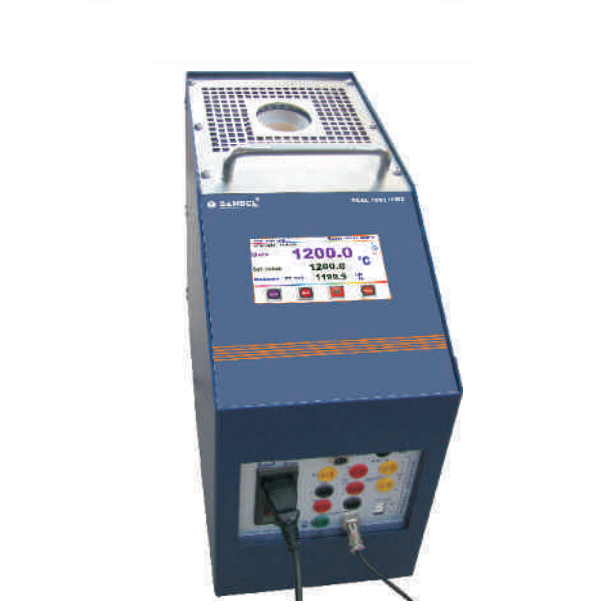

Sansel TCAL 1501/1200 Dry Block Temperature Calibrator (500~1200°C; 0.1°C)

Range: 500 ~ 1200°C

Resolution: 0.1°C

Uniformity: ±3°C

Stability: ±0.3°C

Heating time: 60 mins (Amb. ~ 1200°C)

Cooling time: 120 mins (1200 ~ 100°C)

Time to stabilize: 30 mins

Well dimension (dia. x depth): 39 x 150 mm

Standard Well Holes: 5.2, 6.2, 6.2, 10.1, 12.1 mm

Power consumption: 2200 VA

Dimension (LxWxH): 340 x 175 x 425 mm

Weight (without well insert): ~18 kg

Display: 4.3 inch True TFT DISPLAY with touch screen

Measure inputs: (optional) RTD- PT 100, PT 1000 /TC - J , K , R , S, T , B , N /mA/mV/Ohms

Switch test: Provided on front panel

Power supply: 110V or 230V; AC 50/60 Hz
