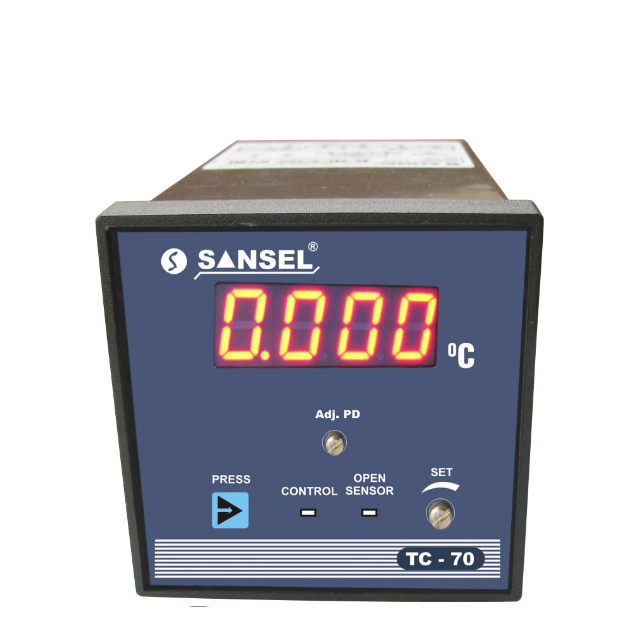

Sansel TC 70 ເຄື່ອງຄວບຄຸມອຸນຫະພູມ (-199.9~199.9°C; -200~400°C)

Display: 3 ½ Display 0.5” Red seven segment LED

Resolution: RTD 0.1/1°C (anyone) (or) TC- 1°C

Range: PT 100: -199.9 ~ +199.9°C (or) -200 ~ +400°C

TC-J-0~400°C; TC-K-0~1200°C

Input: PT 100/J/K (factory preselectable)

Control mode: ON/OFF or PD (factory preselectable)

Control action: Heat or Cool (factory preselectable)

Relay output: 1 No, 1NC 5A Rated max

SSR output: 12VDC ±10% (50mA max)

Working temperature: 0~50°C

Power supply: 230AC/50HZ

Overall dimension: 72x72x110mm

Cut out dimension: 68x68mm

Weight: 494gms
