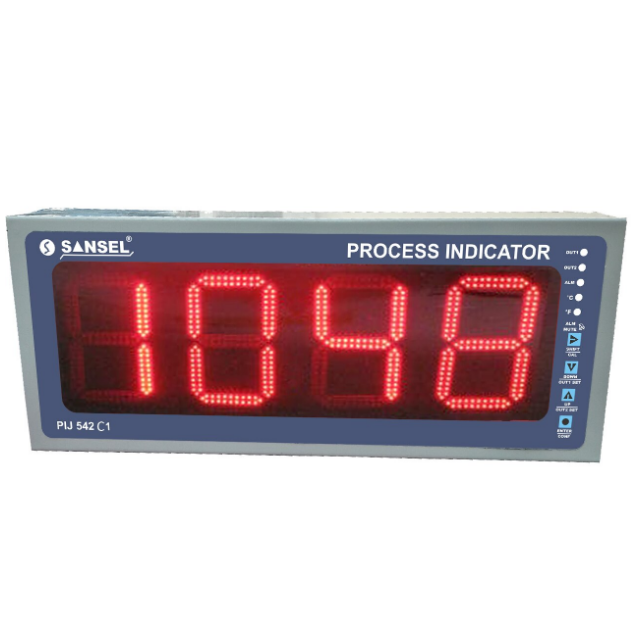

Sansel PIJ 542C1 ຕົວຊີ້ວັດຂະບວນການ Jumbo (8'' 4 Digit; ±0.1%FS)

Display: 8'' 4 Digit 7 segment RED LED

Analog inputs: 0~20 mA, 0~70 mV, 0~10 V DC, 0~400 U (H & L Limit Programmable)

Temperature inputs: RTD-PT 100, Thermocouple-J, K, R, S, T, B, N, E

Analog display range: - 1999~9999 (H & L Limit Programmable)

Temperature range:

(H & L Limit Programmable)

RTD-PT 100 (-199.9~850.0°C/ -199.9~999.9°F)

TC-J (-200~1200°C/ -328~2192°F)

TC-K (-200~1372°C/ -327~2501°F)

TC-R (-40~1768°C/ -40~3214°F)

TC-S (-40~1768°C/ -40~3214°F)

TC-T (-200~400°C/ -328~752°F)

TC-B (300~1820°C/ 572~3308°F)

TC-N (-200~1300°C/ -327~2372°F)

TC-E (-200~999.9°C/ -327~1832°F)

Unit selection: °C/°F (for RTD & TC inputs)

Analog resolution: 0.001/ 0.01/ 0.1/ 1 (Selectable)

Temperature resolution: 0.1/ 1°C/ °F (optional 0.01 for RTD - PT 100 I/P up to 99.99 °C)

Accuracy: ±0.1% of FS

Hold delay: 0~999 sec (selectable)

PC Communication (optional): RS 485 (2 wire)

Sensor supply (external): 24VDC ±10% @ 100 mA

Operating environment: 0~50ºC/ 5~95% RH Non Condensing

Power supply: 230VAC/ DC/ 50/60Hz

Overall dimension: 171(H)x428(W)x85(D) mm

Weight: ≈4.2 kg
