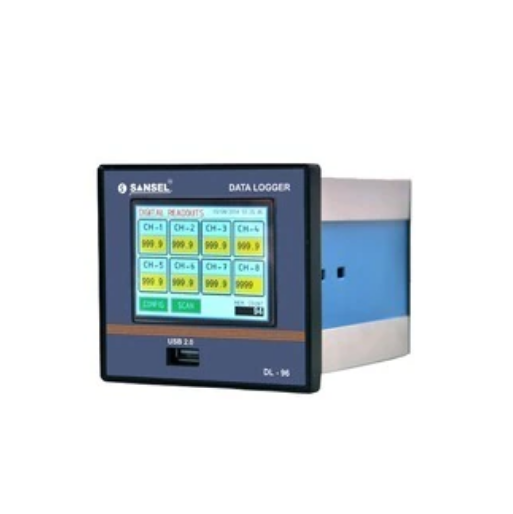

Sansel DL 96 ຕົວບັນທຶກຂໍ້ມູນ (8 channel)

Display: Multi Colour TFT display with Touch Screen

No.of. Channel: 8 channel

Password Access: Provided for all configuration settings

Analog & Temp. Inputs (Selectable for Universal Model): RTD - PT 100, TC - J, K, R, S, mA, mV, Volt

Range: As per Input

Alarm output (optional against order): 1 or 2 Common relay (5 A Rated)

Alarm set point: High & Low (user selectable)

Log Interval: 1 sec ~ 24 hour (Selectable)

PC software: Provided logging, alarm setup, record, graph

PC communication: RS 232 or RS 485 or USB or Ethernet(TCP/IP)

Baud rate: 9600 bps

Printer port: Parallel printer port provided

USB connection: USB 2.0 for pen drive data transfer

Mounting: Panel mounting

Operating environment: 0~50ºC / 20~95% RH (non condensing)
