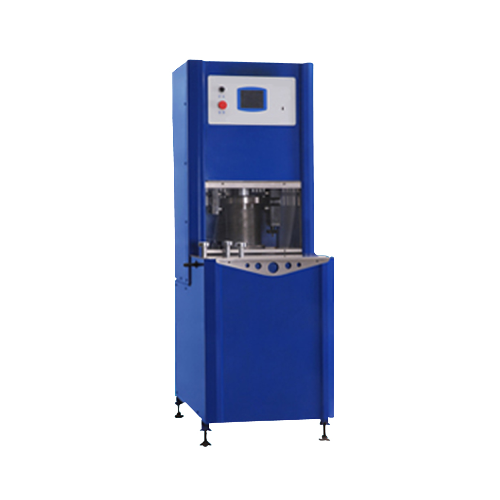

Samyon XY150-1 Gyrator Compactor (0～250 mm)

1. Movement range for compactor:   (0～250）mm

2. Moding sample height range: （50~170）mm

3. Rotary compaction movement accuracy: less 0.10mm

4. Range of gyrate compaction angle:  (0~2）°, ±0.02° adjustable.

(Calibrated at 1.16°±0.02° internal angle when leaving the factory)

5. Rotary compaction pressure: （0~1000）Kpa±3%,

(Calibrated at 600Kpa±2% when leaving factory, bigger pressure can be customizable)

6. Rotation speed：30±0.3）r/min,customizable continuous adjustable speed

7. Spinning times:  0~999

8. Displace measurement: （0~220）mm

9. Test model diameter: standard Φ150mm, optional Φ100mm

10. Pressure mode:    pneumatic

11、Instrument dimension:      850mm×640mm×1800mm(L*W*H)

12、Package dimension: 1000mm×800mm×1950mm(L*W*H)

13、Model weight: 7.5kg

14、Gross weight: 350kg
