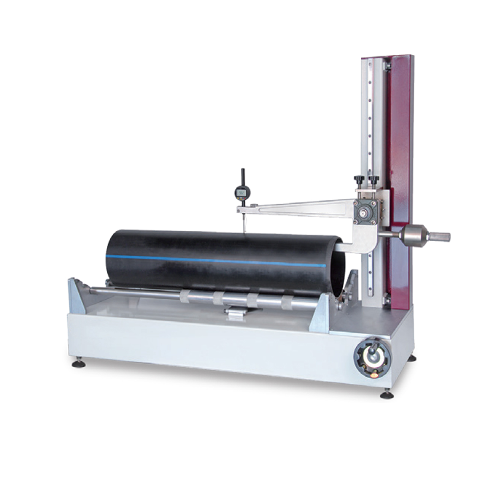

Samyon SYWTM ອຸປະກອນການທົດສອບການວັດແທກຄວາມຫນາຂອງຝາສໍາລັບທໍ່ພາດສະຕິກ (40-630mm)

Application:

It can be used to determine wall thickness for pipes(PE, PB, PEX-AI-PEX,etc) at the max. axial depth of 400mm.

It is used to measure the wall thickness of plastic, glass fiber, metal composite and other pipes. The product is equipped with PC software, which can set up circumferential measuring points at will, automatically record and select the maximum and minimum wall thickness, and calculate the average thickness.

Standard: ISO3126:2005-Plastics piping systems-Plastics components-Determination of dimensions.

Parameter:

Applicable pipe diameter range: 40-630mm

Pipe wall thickness range: 0-100mm

Axial maximum measurement depth: 400mm

Measurement accuracy: ±0.02mm
