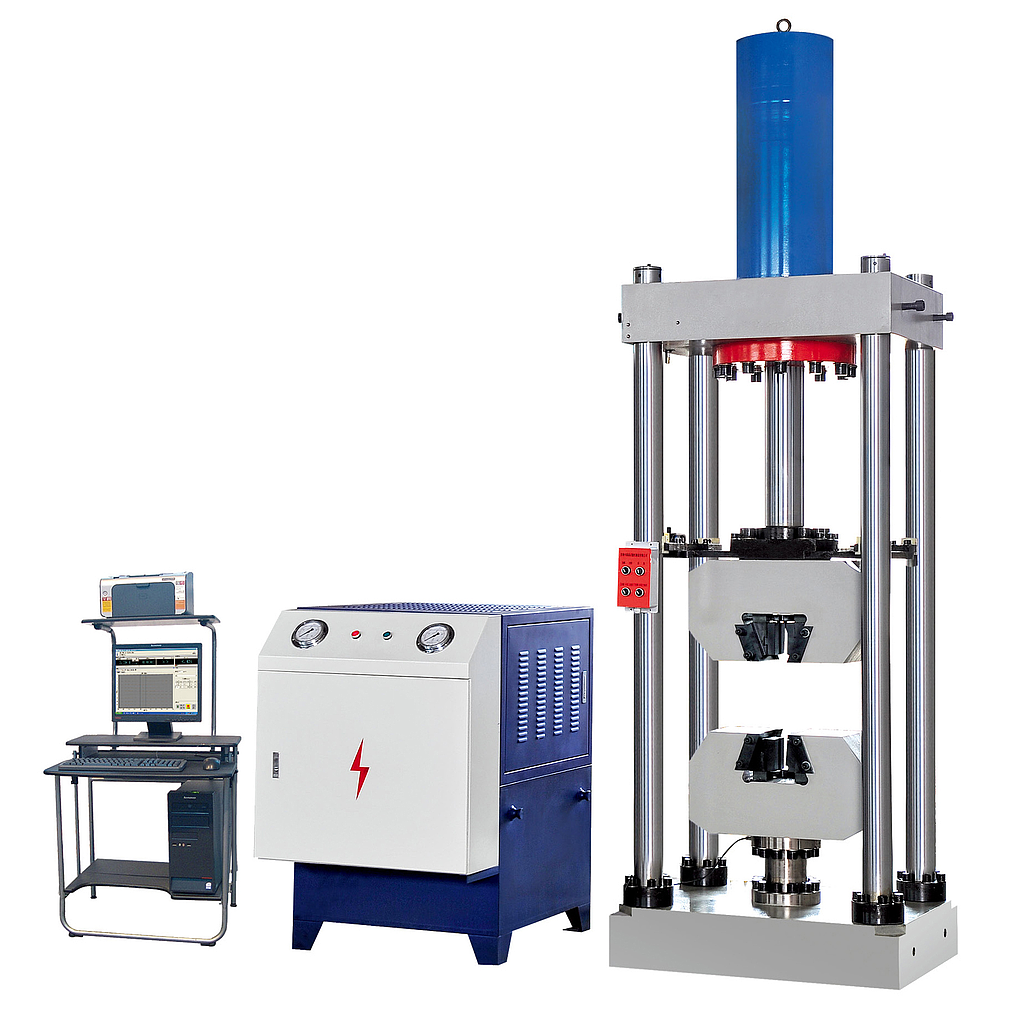

Main Function:
This product is mainly used for the tensile test of metal materials. It is totally conformed to the requirement of GB/T228.1-2010,Metallic materials.Tensile testing.
Main Specifications and Technical Parameter:
Class of Testing Machine: Class 0.3/0.5
Maximum Testing Force(kN): 600
Measure Range of Testing Force(kN): 6~600
Value Display Accuracy of Testing Force: No more than ±0.3%/±0.5% inaccuracy from the value display
Discrimination of Displacement Measure (mm): 0.005
Accuracy of Displacement Measure: No more than ±0.5 % inaccuracy from the value display
Discrimination of Deformation Measure(mm): 0.001
Maximum Piston Stroke(mm): 680
Maximum Spacing of Tensile Jaw(mm)(Including Piston Stroke): 700
Accuracy of Deformation Measure: No more than ±0.5 % inaccuracy from the value display
Overload Protection: If beyond the 5% of the full scale
Clamping Method: Hydraulic wedge clamping
Round Specimen Clamping Range(mm): Φ14~Φ60
Flat Specimen Clamping Range(mm): 0~60
Column Number(Unit): 4
Overall Dimension(mm): 1000×750×3160
Total Power(kW): 7.5
Weight(kg): 4500
