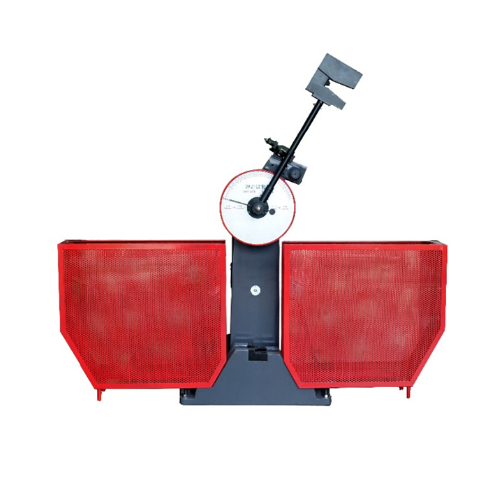

Samyon SYW-300B ເຄື່ອງທົດສອບຜົນກະທົບ (150/300J)

Product Application

The series impact testing machine is used to test the impact resistance performance of the metal materials under live load, being an indispensable testing instrument in metallurgy and machine manufacturing units and is also a necessary testing instrument for the research of new materials in research institutions.

Parameter:

Display type: Microcomputer screen display

Impact energy: 150/300J

The distance between the pendulum shaft and impact point: 750mm

Impact speed: 5.2m/s

Pre-rising angle of the pendulum: 150°

Specimen bearer span: 40mm

Round angle of the jaw: R1-1.5mm

Round angle of impact cutting edge: R2-2.5mm,R8±0.05mm

Specimen size: 10(7.5/5/2.5)mm*10mm*55mm

Dimension: 2200*650*1900mm

Angular accuracy: 0.1°
