Product Application:

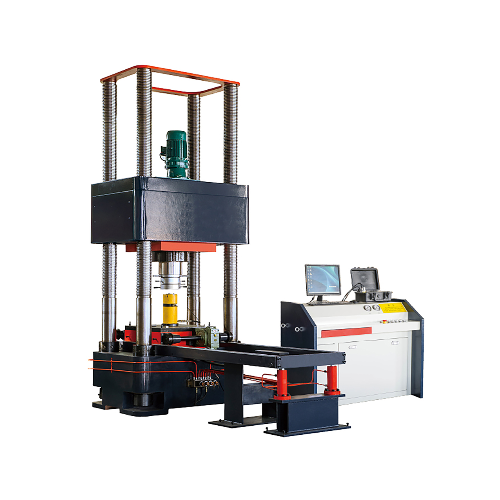

The microcomputer-controlled electro-hydraulic servo jack test machine adopts the cylinder under-type and four-column structure.
The rigidity of the frame is high, the deformation is small, and the test space is steplessly adjustable, which is convenient for the detection of jacks of different heights.
The dual oil source system is used to control the jack and the lift cylinder respectively. The electric feeding trolley mechanism is adopted to facilitate the feeding and exit of the jack.
The product is equipped with a unique jack loading and unloading platform, which reduces the impact on the electric trolley during the loading and unloading process of the jack. The guide rail adopts a four-cylinder synchronous lifting device, which facilitates the detection and exit of the jack.
Specifications：
Maximum carrying capacity: 5000kN-50000kN
Maximum lift of the guide rail: 20kN-100kN
Test adjustment space: 0-2200mm
Maximum test space: 1600mm-2200mm
Upper and lower platen thickness: 150mm, 200mm, 300mm
Upper and lower platen hardness: HRC50-55
Beam lifting speed: 200mm/min
