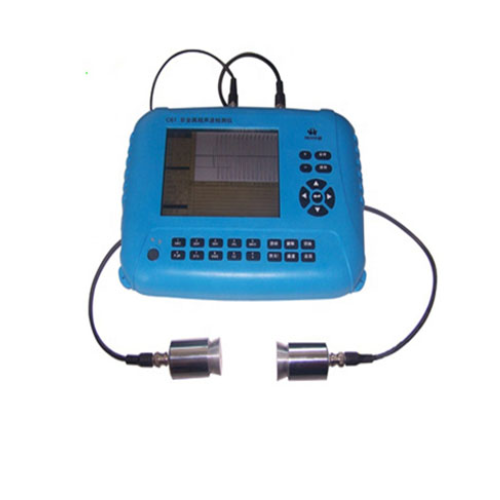

Samyon SYC62 ເຄື່ອງກວດຈັບ Ultrasonic Nonmetal (0.05us)

Main control unit: high-performance embedded computer

Input method: keyboard

Interface: USB

Receive channel: two

Transmission mode: continuous and external

Receive sensitivity: <=30uv

Amplifier bandwidth: 5kHz to 500kHz

Sound time accuracy: 0.05us

Display: 640*480 high brightness TFT panel

Storage: 1G(interior) 1G(U-Disk)

Max sample data length: 64k

Trigger voltage(V): 65,125,250,500,1000(selectable)

Amplifier gain: 82dB

Sample periods: 0.05us to 6.4us,8grade adjustable

Amplifier resolution: 0.39%

Power: interior lithium battery works more than 6 hours

External lithium battery works more than 6 hours (optional)

DC 12V interface

AC 100V-240V,50/60Hz

Size: 260*185*60mm

Weight: 1.75kg(including the battery)

Temperature: -10℃-+40℃
