Product Application:

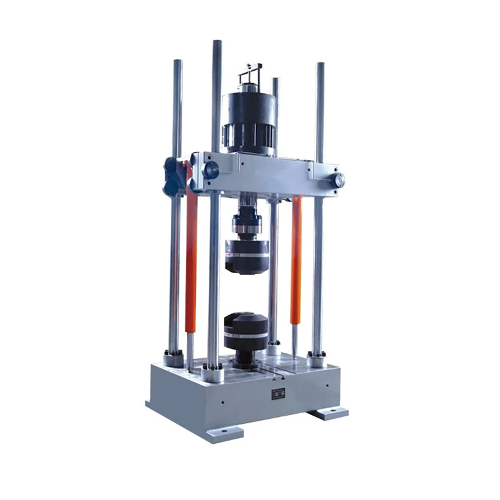

- This series of electro-hydraulic servo static and dynamic universal testing machine is mainly used for dynamic and static mechanical properties testing of materials and components, including tensile, compression, low cycle and high cycle fatigue tests of materials and components. It can be used for crack propagation fracture mechanics of various materials and various other mechanical tests by configuring corresponding accessories and test software. The test clamp can be adjusted to perform dynamic and static tests on various non-metallic materials and components.
- This series of electro-hydraulic servo static and dynamic universal testing machine can be widely used in aerospace, ship, military, locomotive, automobile, atomic energy, scientific research institutes, higher education and other fields.
Technical Parameters:
Maximum test force: 2000kN
Test force indication accuracy: Within the range of 2%-100% FS, each point is ±1.0%
Displacement accuracy: ±0.5%FS
Frequency range (Hz): 0.01—50 Controller 0.01—100
Number of columns: 4
Hydraulic forced for maximum distance between chucks (mm): 1500
Effective distance between columns (mm): 1300*1000
Column diameter (mm): 180
Actuator rod diameter/plug diameter (mm): 250/430
Pump station total flow (L/min): 280
Pump station pressure (MPa): 21
Pump station total power (kW): 110
Power supply: 380V， AC
