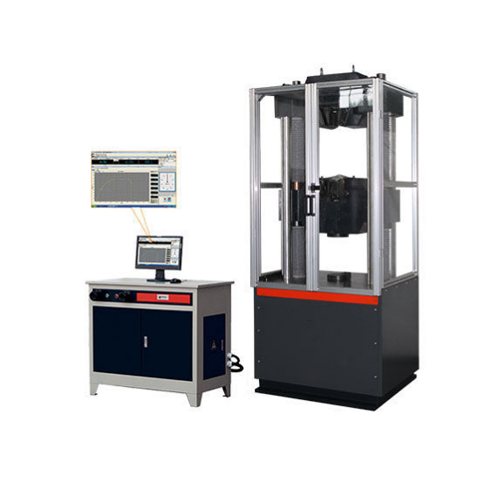

- Application:
This product is mainly used for the tensile test of metal materials,testing the tensile strength,yield strength, stipulated plastic extension strength, percentage elongation after fracture,elasticity modulus and other mechanical performance index.
Control method of rate testing: manual control
- Parameter:
Maximum Testing Force: 300 kN
Class of Testing Machine: Class 1
Efficient Measure Range: 10%-100%FS
Relative Accuracy of Value Display: ±1%
Discrimination of Testing Force: 0.005
Discrimination of Displacement: 0.001
Tensile Volume（mm）: 650
Compression Volume （mm）: 600
Column Space（mm）: 430
Round Specimen Clamping Range（mm）: Φ6-Φ26
Flat Specimen Clamping Thickness（mm): 0-30
Max. Width of Flat Specimen Clamping （mm）: 75
Pressure Plate Dimension（mm）: Φ160
Overall Dimension （L*W*H）(mm): 740*590*2150
Oil Source Console Dimension（mm）: 1150*800*1000
Total Motor Power（kW): 1.5
Total Weight（kg）: 1600
