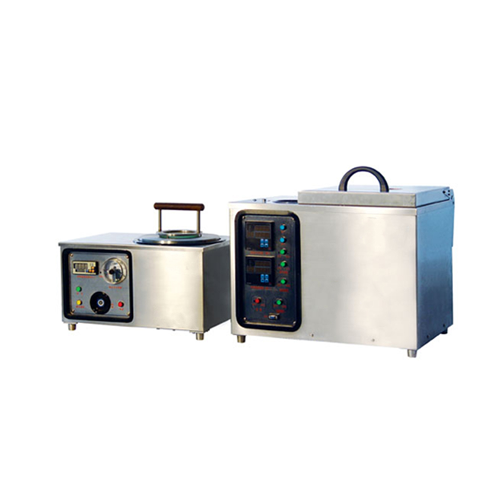

Samyon PAV-1 ລະບົບ Bitumen PAV (1100W, 900W)

(1) PAV-1-1 pressuring aging vessel

1.Electricity

Power supply：          AC（220±10%）V、50Hz

Rated power：           1100W

Rated current：          10A

2.Vessel

Volume：               13L

Medium：               Air

Rated working temp.：           110℃±5℃

Rated working pressure：           2.1MPa

Designed pressure：               2.2 MPa

Water pressure：                  2.75 MPa

    Safety valve opening pressure：      2.15 MPa

Explosive pressure for rupture disk：  2.6 MPa

3. Pressure controller

Model：                     WP962-2(WP-D90)

Precision：                   ±0.01MPa

4. Temperature and time controller     Model WP962-1(WP-D90)

Temperature control precision：    ±0.1℃

Grading：              64×1080min

Outage maintaining function：     Yes

Dimension :             630mm×450mm×500mm

（2）PAV-1-2 aging vacuum vessel

1. Electricity

Power supply：           AC（220±10%）V、50Hz

Rated power：            900W

Rated current：           10A

2. Vessel

Volume：                13L

Medium：                Air

Rated working temp.：      180℃±5℃

Rated working pressure：    Absolute pressure 15kPa

Pressure control mode：     Electric contact pressure gauge

3. Temperature and time controller      Model XMT-E55T2

Temperature control precision：    ±0.1℃

Time control mode：             Button

4. Dimension              560mm×390mm×350mm
