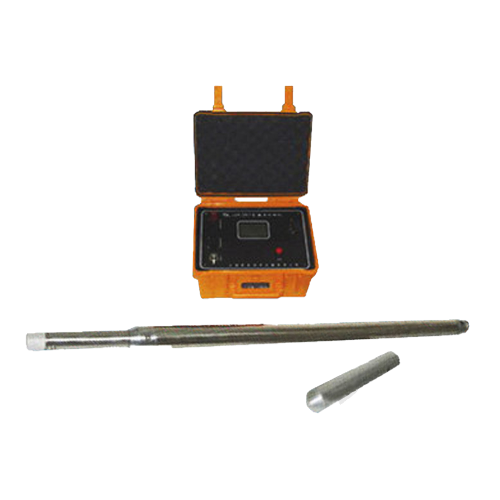

Samyon JJX-3A2 ດິຈິຕອລ Inclinometer (0 ~ 50 °)

1. Measurement depth:  ≤1200 meters

2. Measurement range and precision:

(1) Dip angle: 0～50°;  ±0.2°

(2) Azimuth angle: 0～360°

When dip angle is 1～3°:  ±5.0°

When dip angle is 3～50°:  ±3.0°

3. Measurement mode: At fixed points; the depth intervals and measurement points can be preset at random

4. Record mode: manual

5. Power supply: AC 220V±10%, 50 Hz

6. Working environment for controlling unit:

(1) Temperature: -10℃～50℃

(2) Relative humidity: ≤85%

7. Working environment for inclinometer probe:

(1) Temperature: 0℃～75℃

(2) Enduring pressure: ≤15MPa

8. Size and weight:

(1) Controlling unit: 270×220×155 (mm); 2.4 kg

(2) Inclinometer probe: Φ54×1345 (mm); 13.5 kg
