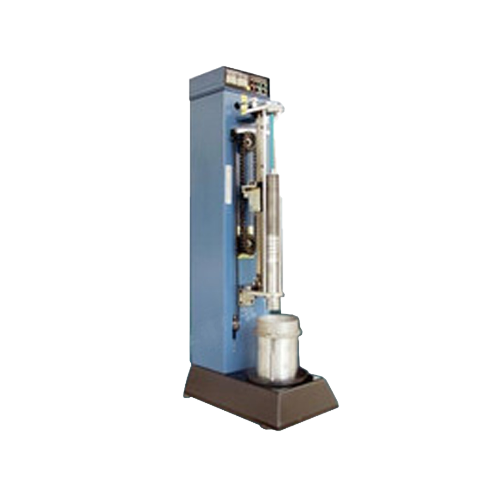

Samyon JDS-1 ເຄື່ອງອັດດິນໄຟຟ້າຄວບຄຸມດ້ວຍດິຈິຕອລ (457mm)

Application:

The compactor is suitable for the foundation engineering construction such as water conservancy dam, traffic, railway, airport and buildings etc.. With standard compaction method to determine the relationship between density and water ratio so as to confirm the dry density and moisture content of soil.

Specifications:

Hammer: 2.5kg / Ø50mm, Ø51mm; 4.5kg / Ø50mm, Ø51mm

Drop: adjustable either 300mm, 305mm, 400mm, 457mm

Mold dimension:  Ø100 × 127mm, Ø102 × 116mm, Ø152 × 116mm, Ø152 × 120mm, Ø152 × 166mm, Ø152 × 170mm

Power supply: 220V±10%, 50Hz

Dimension: 570 × 360 × 1360mm (L × W × H)

Weight:  90kg
