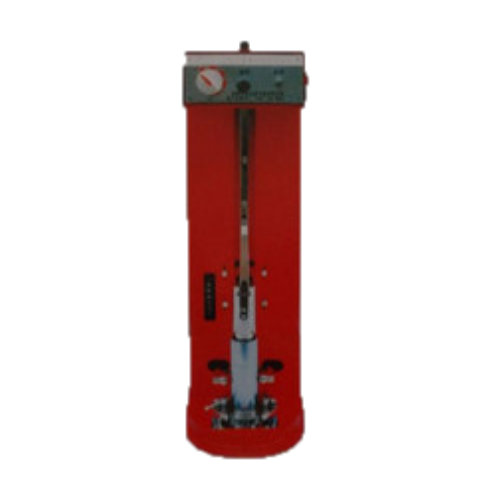

Samyon JDM-1 ອຸປະກອນຄວາມຫນາແຫນ້ນຂອງອຸປະກອນໄຟຟ້າ (120W)

Application:

The Electric Relative Density Apparatus is suitable for measuring maximum density and minimum porosity ratio of the soil with the grain size less than 5mm of non-cohesive soil and the mass of the specimen with the grain size of 2 – 5mm is not more than 15% of total mass of the specimen so as to calculate the relative density of the soil. It consists of drive system, control panel, vibration hammer etc.

Specifications:

1. Mold: 250ml, internal diam: Ø5cm, height: 12.7cm, including sleeve

2. Hammer: hammer mass: 1.25Kg, 32 stroke times per minute

hammer: Ø5cm

3. Drop: 15cm

4. Timing range: 0 – 15minutes

5. Power: 120W

6. Power supply: 220V
