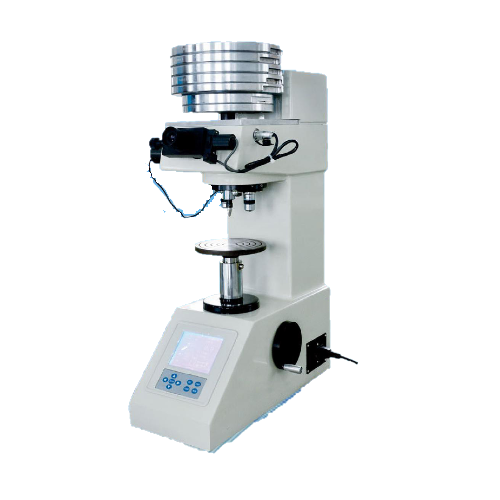

Samyon HV-10B ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Vickers ຕ່ໍາ (30-3000HV)

Feature & Use:

Automatic testing process, no human operating error

Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92

It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Specifications：

Measuring range: 30-3000HV

Test force: 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N

(0.5, 1, 2, 2.5, 3, 5, 10kgf)

Max. height of test piece: 130mm

Depth of throat: 100mm

Magnifications of the measuring system: 500X, 125X

Min. scale value of the optical micrometer: 0.25μm

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 438 x 382 x 708mm

Weight: approx. 70kg

Standard accessories：

Coordinate anvil: 1 pc.

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond pyramid penetrator: 1 pc.

Vickers standardized block: 2 pcs.

Electronic calculator: 1 pc.
