Samyon HLN200 ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Leeb Multifunctional (170～960 HLD)

Application range:

For testing on large and heavy workpieces or installed permanent parts

For testing in narrow and small spaces where it is not easy to test for bench type hardness testers

It is suitable to determinethe Leeb hardness of ferrous and non-ferrous metals precisely.

Itfeatures high applicability and is widely used in producing workshop for quality control.

Specifications:

Measuring accuracy: ± 4 HLD

Hardness repeatability: ± 4 HLD

Measuring range: 170～960 HLD

Testing direction: arbitrary

Hardness conversion: HRC, HRB, HB, HV, HSD & tensile strength

LCD display: 3.9" LCD, 240 x 320 pixels resolution (touch screen)

Data storage: 800 groups

Upper & lower limit range: same as measuring range

Working voltage: 3.7V (lithium rechargeable battery)

Working time: 4-8 hours

Charging power: DC 5.5V/1A

Continuous working time after one charging: about 30 hours (backlight not on)

Working temperature: 0 °C～+50°C

Working humidity: 20%～85%

Storage temperature: -30 °C ～+70 °C

Storage humidity: 5%～95%　

Dimensions: 180 x 90 x 30mm

Weight: 350g (including impact device)

Packing dimensions: 368 x 247 x 87mm

Total weight: Approx. 5.5Kg　

Heatsensitive printer:

Width of print paper: 57.5± 0.5mm

Diameter of paper roll: ≤30mm (Heatsensitive print paper)

Printing speed: 5cm/sec. (when power is enough)

Printing resolution: 203dpi (8dot/mm)

Working power supply: 650mAh 7.2V rechargeable NiMH

Recharging power supply: DC 12V/1A

Dimensions: 90 x 76 x 36mm

Weight: 220g (not including paper roll)

Working temperature: -20 °C ～+50 °C

Working humidity: 20%～85%

Storage temperature: -30 °C ～+70 °C

Storage humidity: 5%～95%

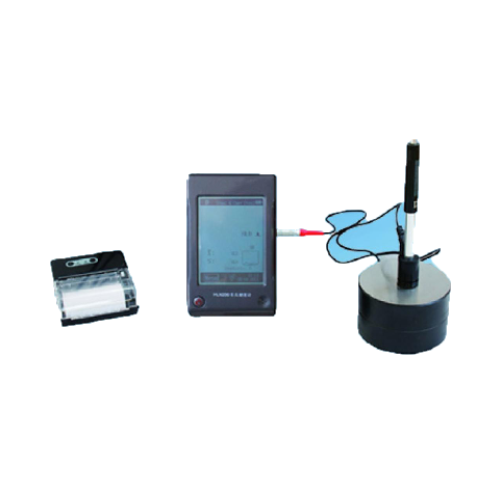

Standard accessories:

Heatsensitive mini-printer: 1 pc.

D type impact device: 1 pc.

Small support ring: 1 pc.

Leeb standardized block: 1 pc.

Charger: 1 pc.(For both main machine and printer)

Nylon brush: 1 pc.
