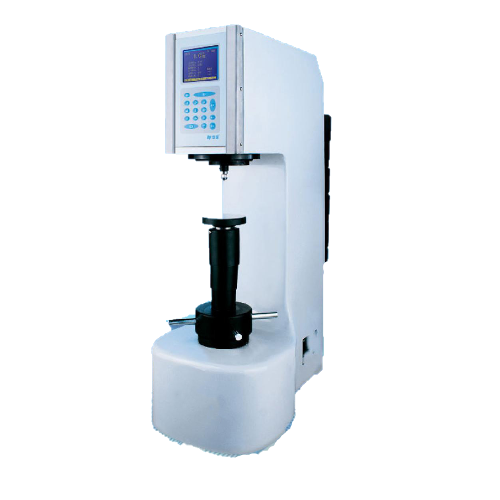

Samyon HB-3000B ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Brinell (8-650HBW)

Feature & Use:

Motor and reducer are connected in an integral way, low noise

Electronic reversing switch

It’s steady and reliable for testing of curved surface

Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

It’s suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Specifications:

Measuring range: 8-650HBW

Test force: 1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N (187.5, 250, 500, 750, 1000, 1500, 3000kgf)

Max. height of test piece: 230mm

Depth of throat: 120mm

Power supply: 380V/220V AC, 50 Hz

Dimensions: 700 x 268 x 842mm

Weight: approx. 210kg

Standard accessories:

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each

Brinell standardized block: 2 pcs.

20X Readout microscope: 1 pc.

Spare fuse: 2 pcs.
