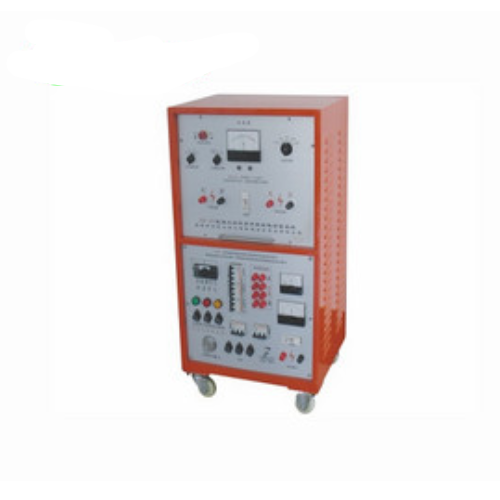

Samyon DD-25 Super-power multi-parameter IP & ລະບົບຕ້ານທານ (25KW)
Feature:
Multifunction: Receiver in situ can directly do apparent resistivity, apparent polarization, and half delay and so on. It records all the process of total discharger and induced polarization effects to analysis parameters.
Multi-parameter: Calculate induced polarization and half delay rate according to time; follow multi-parameter to analysis electric abnormal to guide mineral and non-mineral difference.
Underground depth up to 1000m.
It can also integrate with other type of receiver as power supply system.
Transmitter Specification:
Input Voltage: 380V（three phase）
Output voltage: 250V-1200V
Max Output current: 25A
Output Power: 25KW
Work temperature: -10°--50°
Resistance: ＞100MΩ
Size: 440×540×1020mm
Weight: 150kg
Ripple ratio: ≤0.03
Power supply specification:
Output Voltage: 250V-1200V
Output power: 25KW
Max output current: 25A
Power period: 4s、8s、16s、32s，Handle，External control
Duty ratio: 1：1：1：1
Work temperature: -10°--50°
Resistance: ＞100MΩ
Internal friction: 12V、25mA
work supply: 12V1.3Ah recharge
