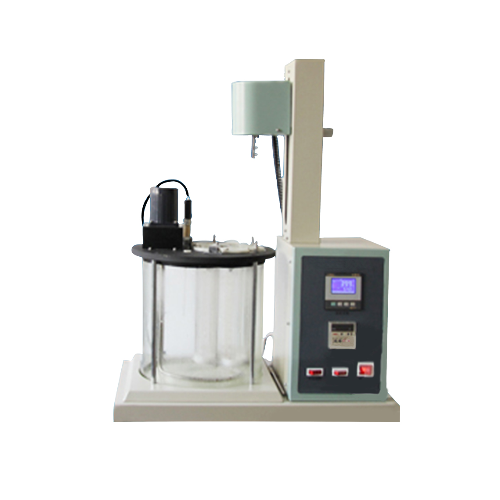

Samyon 7305 Demulsibility Characteristics Tester (1000W)

I. Main technical features

1. This instrument adopts small bath and desktop structure. It is easy to operate and good-looking.

2. It adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.

3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.

II. Main technical specifications

1. Power supply：   AC(220±10%)V, 50Hz

2. Temperature range：   (Room temp.∼99.9)℃

3. Temperature control accuracy：   ±1℃

4. Resolution：   0.1℃

5. Temperature display：   Digital

6. Timing range：    1s∼9m 59s

7. Timing set：      Dial control

8. Time display：    Digital

9. Stirring rate：     (1500±15)r/min

10.Heating power：   1000W

11.Ambient temperature：    (Room temp.∼35)℃

12.Relative humidity：     ≤85％

13.Maximum Power consumption：    1200W

14.Dimension：     500mm×340mm×720mm

Note: If the required temperature is lower than room temperature,it can equip ZL-1 portable cooler manufactured by our company.
