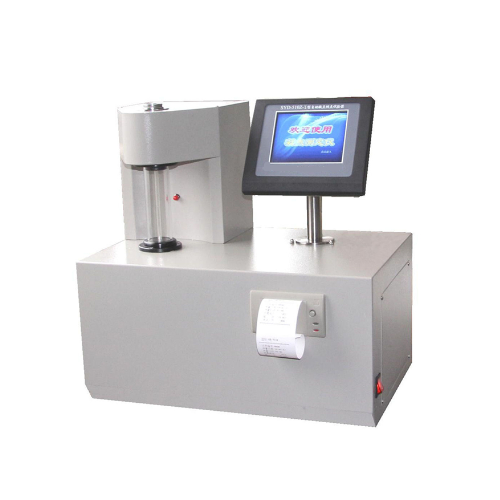

Samyon 510Z-1 ອັດຕະໂນມັດ. Solidifying Point ແລະ Pour ຈຸດ Tester (-60℃～10℃)

I. Main technical features

1. It adopts SCM as the core control system. Colored touch screen. It can track and display the real-time temperature, and simulate the test status intelligently.

2. It adopts high accuracy detecting sensor and semiconductor refrigeration technology. The test precision is high.

3. It uses little mass of oil sample. The test is rapid(5~10 min for one test). The test procedures are completed automatically are injecting the sample. It has good stability and repeatability. The result is reasonable. The test result can be printed after test.

4. The instrument needs less sample for the determination. The intelligence is high. It can do the test automatically after the sample is added. A micro-printer is equipped.

II.Main technical specifications

1. Applicable oils: The oils with solidifying point at -60℃～10℃

2. Precision: ±1℃ (HWY-15 Low-temperature circulatory water bath when the solidifying point is lower than -50℃ )

3. Display resolution:  0.1℃

4. Maximum cooling depth: Temperature difference ≥65℃

5. Cooling speed: 15min temperature difference≥60℃

6. Requirement for cooling water: Pressure：（4.9×10～49×105）Pa   Flow rate：1.5L/min

7. Power supply: AC220V±22V，50Hz

8. Maximum power consumption: 250W

9. Sample dose: 20ml per time

10. Working environment: Ambient temperature:（25±10）℃,  RH ＜85%

11. Dimension: 460mm×360mm×470mm

12. Net weight: 26Kg

III. Optional accessories

Low temperature water bath：HWY-15 Low-temperature circulatory water bath
