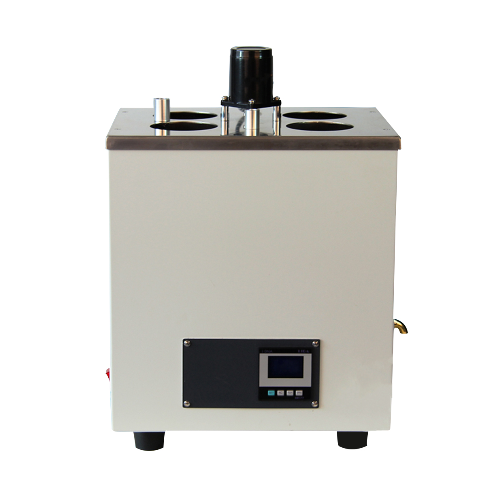

Samyon 5096A ເຄື່ອງທົດສອບການກັດກ່ອນຂອງເສັ້ນທອງແດງ (1600 W)

I. Main technical features

1. It adopts LCD temperature controller,heater and electric stirrer to form the constant bath. The temperature in bath is uniform. The temperature controller has timing function.It can control the test time and automatically timing. There will be alarm when finished.

2. The instrument has four sample holes. One bomb or three tubes can be put in each hole to be determined.The test efficiency is high.

3. The instrument equips a standard color board imported from USA. It can meet requirements of test method.

II. Main technical specifications

1. Power supply:  AC 220 V±10%, 50 Hz

2. Temperature sensor:  RTD, Pt100

3. Temperature range:  Ambient to 100 ℃,can be set at will

4. Temperature control accuracy:  ±1 ℃

5. Temperature display mode:  LCD

6. Heating power:  1600 W

7. Time controlling range:  1 minute～24 hours,can be setted at will

8. Sample testing positions:  Four positions

9. Sample quantity at one test: 4 pieces～12 pieces

10. Ambient temperature:  Room temperature～35 ℃

11. Relative humidity:  ≤ 85%

12. Maximum power consumption:  1800 W

13. Dimension:  440mm×330mm×560mm
