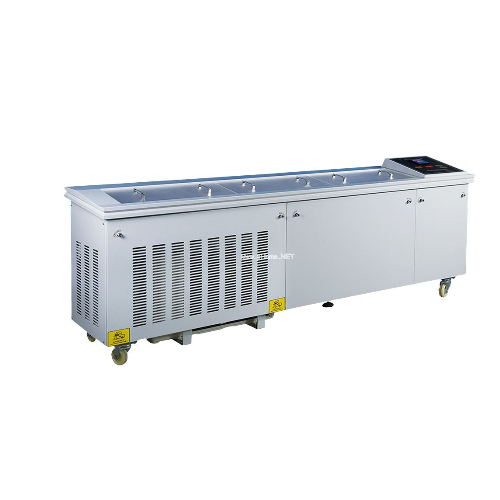

Samyon 4508C Bitumen Ductility Tester

Power supply: AC220V(-5%~+10%),50Hz

Measurement distance: 1.5m(±10mm)

Heating mode: Electric heater

Heating power: 3000W

Liquid circulation: By magnet circulation pump

Temperature control range: (5~49)ºC,adjustable. Resolution is 0.01ºC

Temperature control accuracy: ±0.1ºC

Tensile speed: 10mm/min and 50mm/min, two grades

Measurement accuracy: ±1 mm

Ductility display: Digital display after data processed by a single chip machine

Refrigeration: Compressor 1.25P, input power is 950W

Ambient temperature: (-10~+35)ºC

Relative humidity: ≤85%

Maximum power consumption: 4100W

Overall dimension: 2365mm×520mm×1000mm
