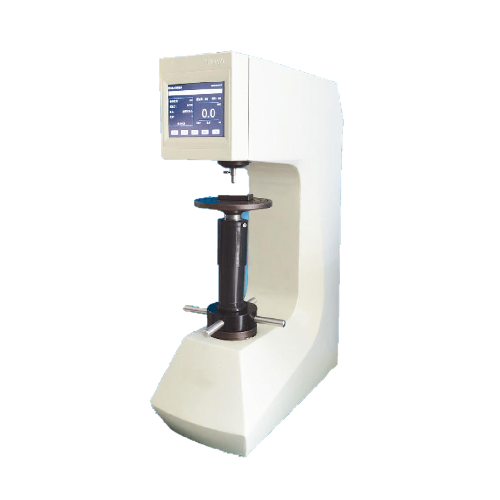

Samyon 410HRS-150 ຈໍສະແດງຜົນດິຈິຕອນ Rockwell Hardness Tester (20-70HRC)

Feature & Use

High sensitivity large touch screen

15 kinds of Rockwell scales

Automatic test force changing after selection of hardness scale

Optimized mechanical frame, automatic testing process

900 Groups of data storage, which is available to output to U disk

USB and RS232 data interface, which is convenient to connect with PC

Automatic hardness correction by software

Equipped with Bluetooth printer, easy for continuous printing, single point printing and group printing

Chinese-English language conversion

Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

It’s suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Specifications

Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

Test force: 588.4, 980.7, 1471N (60,100,150kgf)

Max. height of test piece: 210mm

Depth of throat: 165mm

Unit for display: 0.1HR

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 522 x 220 x 729mm

Weight: approx. 68kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16”steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.

Printer: 1 pc.
