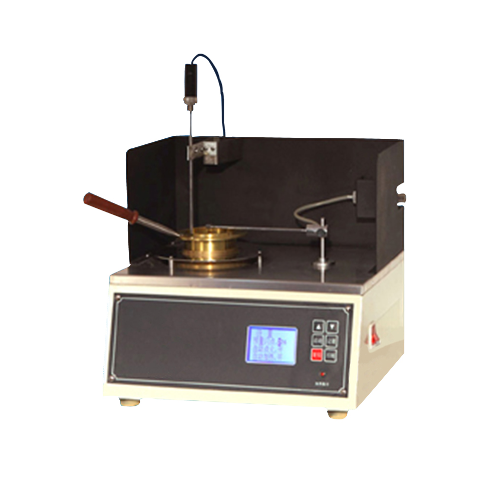

Samyon 3536-1 ເຄື່ອງທົດສອບຈຸດ Flash Point Cleveland Open-Cup ເຕັມອັດຕະໂນມັດ (650W)

1. Power supply:  AC（220±10%）V, 50Hz.

2. Heating device: Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400℃.

3. Temperature control: Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.

4. Temperature display: LCD shows temperature parameters.

The display range is 0℃～400℃, display accuracy is 0.1℃.

5. Flash point detecting device: It applies the test flame automatically.

6. Temperature sensor: RTD, PT100

7. Igniting device: (1) Ignition source: coal gas (or civil gas)

                             (2) Flame diameter is 3.2mm～4.8mm

8. Ambient temperature: (-10∼50)℃

9. Relative humidity: ≤85%

10.Maximum power consumption: 650W

11.Dimension: 340mm×320mm×450mm (Temperature sensor is included)
