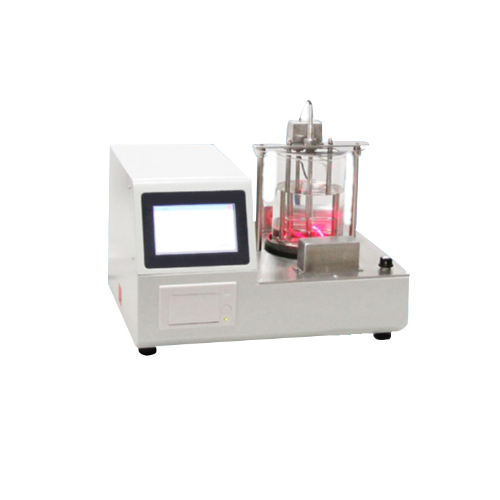

Samyon 2806G ເຄື່ອງທົດສອບຈຸດອ່ອນອັດຕະໂນມັດ (70℃～160℃)

I. Main technical features

1. This instruments adopts microcomputer to control the test. Automatically stir,linear heating, automatically detect the result, automatically print test result.

2. The beaker adopts high temperature resisting glass material. The sizes of steel ring and ball can meet standards.

3. Small desktop structure. LCD display. Light touch panel. It can determine two samples at a time. Easy to use and results reliable.

4. Equips a RS-323C port. Can communicate with PC

II. Main technical specifications

1. Power supply:  AC（220±10%）V, 50Hz

2. Temperature resolution: 0.1 ℃

3. Measurement range:

(1) Heating medium: distilled water 20 ℃～90℃(softening point ≦80 ℃)

(2) Heating medium: glycerin 70℃～160℃(softening point >80 ℃)

4. Heating rate: it will be adjusted to 5.0±0.5 ℃/ min automatically after three minutes

5. Heating power: 600 W

6. Stirrer: the electromagnetic stirring speed can be adjusted continuously, the stirring speed is (0～300) r/min

7. Cubage of beaker: 1000 ml

8. Test result: LCD screen shows results and printer to print.

9. Computer communication interface: RS-232C communication interface

10. Ambient temperature: 15℃～35℃

11. Relative humidity: ≤85%

12. Total power consumption: <700 W

13.Dimension: 400mm×300mm×250mm
