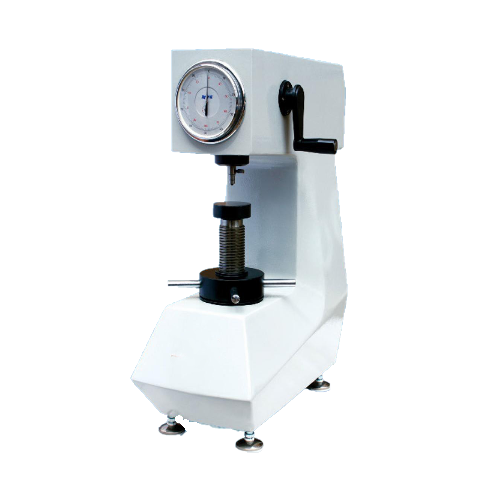

Samyon 210HR-150 ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Rockwell (20-70HRC)

Feature & Use

* Optimized mechanical frame for small test pieces.

* Manual testing process, no need for electric controlling

* It is steady and reliable for testing of curved surface

* Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

It is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Specifications

Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

Test force: 588.4, 980.7, 1471N (60,100,150kgf)

Max. height of test piece: 100mm

Depth of throat: 105mm

Min. scale value: 0.5HR

Dimensions: 460 x 250 x 550mm

Weight: approx. 50 kg

Standard accessories

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16”steel ball penetrator: 1 pc.

Rockwell standardized block: 3 pcs.
