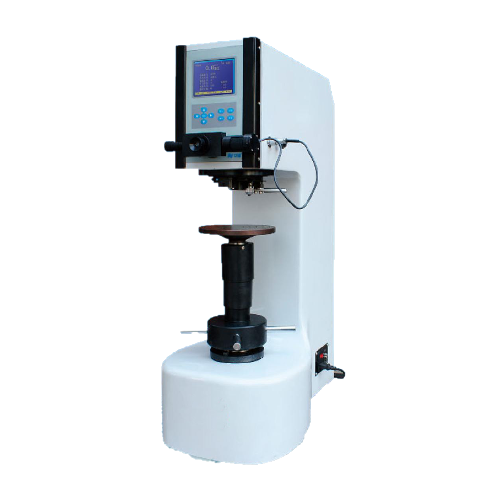

Samyon 210HBS-3000 ເຄື່ອງທົດສອບຄວາມແຂງຂອງຈໍສະແດງຜົນດິຈິຕອນ Brinell (8-650HBW)
Feature:
* Digital display of Hardness value
* Hardness conversion between different hardness scales
* Manual turret, weight loading system
* Automatic testing process, no human operating error
* High travel, large size work table
* Large LCD screen displaying for parameters setup, easy operation
* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Specifications
Measuring range: 8-650HBW
Test force: 612.9, 980.7, 1225.9, 1838.8, 2451.8, 7355.3, 9807, 14710.5, 29421N
（62.5, 100, 125, 187.5, 250, 750, 1000, 1500, 3000kgf）
Max. height of test piece: 280mm
Depth of throat: 150mm
Optical magnification: 20X, 40X
Min. Measuring unit: 1μm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 570 x 330 x 910mm
Weight: Approx. 220kg
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each
Brinell standardized block: 2 pcs.
Optional accessories
Rectangle work table: 400 x 150 x 30 mm
Brinell video measuring system
Brinell CCD image processing system
