Executive standard:
GB50367-2006 design code for strengthening concrete structure.
Description:

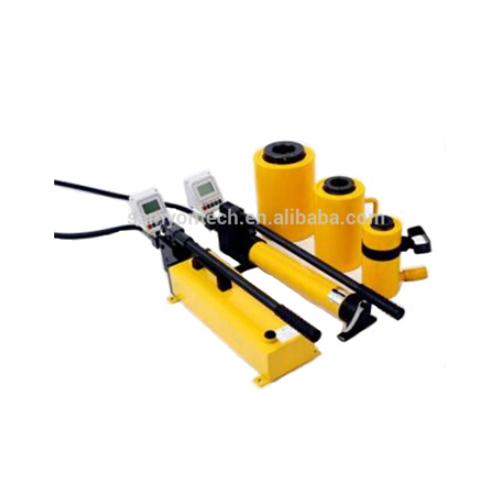

the instrument is suitable for testing the anchorage force of various of anchor shank,rebar and expansion bolts,also testing the pull force of glass block screen wall.
Specification:
Manual pump
+ pressure: 63Mpa
+ weight: 10kg
+ packing case weight: 6kg
Oil cylinder
+ capability: 200KN
+ tension stroke: 80mm
+ weight: 12kg
+ central hole: 34mm
Digital pressure gauge
+ measurement range: 0-200kn
+ power supply: 2pcs No.5 battery
+ weight: 0.34kg
Anchorage specifications(optional): φ6/8/10/12/14/16/18/20/22/25/28/32/36/38/40(optional)
Connector specifications(optional): M6/8/10/12/14/16/18/20/22/24/27/32/39(optional)
Tie rod: M24
