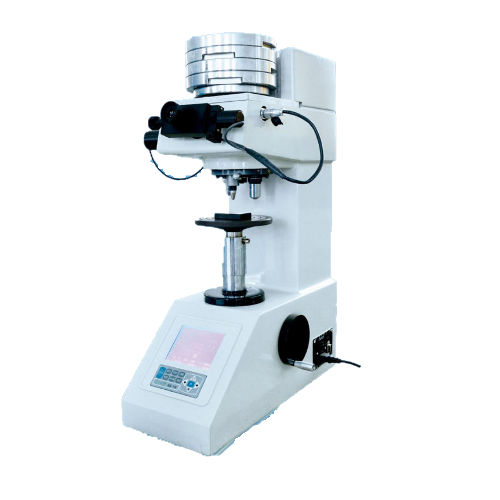

Samyon 200HVS-10 ຈໍສະແດງຜົນດິຈິຕອລ Low Load Vickers Hardness Tester (5-3000HV)

Feature & Use:

RS232 data interface, built-in printer

Hardness conversion between different hardness scales

Automatic testing process

Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92

It's suitable to determine the Vickers hardness of ferrous metals (no including cast iron), non-ferrous metals.

Specifications：

Measuring range: 5-3000HV

Test force: 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N

(0.5, 1, 2, 2.5, 3, 5, 10kgf)

Measuring accuracy of micrometer: ±0.01μm

Test force dwelling time: 0~99 seconds

Optical system:

Objective lens: 10X (for observation), 40X (for measurement)

Eye lens: 12.5X

Total magnification: 125X (for observation), 500X (for measurement)

Max. Height of specimen: 130mm

Depth of throat: 110mm

Size of XY coordinate worktable: 100×100mm

Travel of XY coordinate worktable: 25×25mm

Resolution of XY coordinate worktable: 0.01um

Language: Chinese/English

Power supply: 220V AC/110V AC, 50Hz

Power consumption: ≤50W

Overall dimensions: 486×326×675mm

Weight: approx. 88 kg

Standard accessories：

Coordinate anvil: 1 pc.

Thin shaft anvil (Ø0.3- Ø5mm): 1 pc.

Thin plate anvil: 1 pc.

Flat nose pliers: 1 pc.

Large V-notch anvil: 1 pc.

Small V-notch anvil: 1 pc.

Diamond pyramid penetrator: 1 pc.

Vickers standardized block: 2 pcs.

Optional accessories

CCD image processing system
