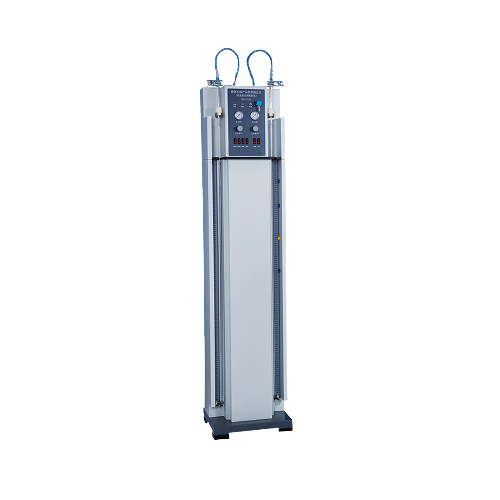

Samyon 11132 ເຄື່ອງທົດສອບ Hydrocarbon Products Liquid Petroleum (0～400 kPa)

I. Main technical features

1. Vertical type and uni-body design. No need to install.

2. This instrument is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.

3. Two pieces of imported precise glass tube adsorption column.Convenient for operation.

4. Equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.

II. Main technical specifications

1. Power supply： AC220V±5%，50Hz

2. Pressure regulating range of reducing valve：(0～400)kPa

3. Electric agitator： independently controlled for each way

4. Ultraviolet light source pipe： 1220mm in length，wavelength is 365mm±5nm

5. Illuminating lamp： 1220mm in length，power is 40W

6. Air supply： Nitrogen cylinder （or air compressor，compressed air bottle）

7. Ambient temperature： (5～35)℃

8. Relative humidity： ≤85%

9. Dimension: 350mm×400mm×1770mm

10.Maximum power consumption: 600W
