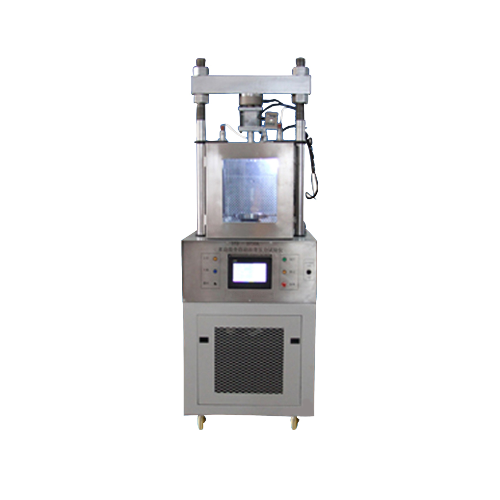

Samyon 0730A Multifunctional Fully-Auto. ເຄື່ອງທົດສອບຄວາມກົດດັນທາງປູຢາງ (0~100 kN)

Pressure 1 measurement range and accuracy: range (0~100)kN, accuracy ±0.01kN

Pressure 2 measurement range and accuracy: range (0~3)kN, accuracy ±0.01kN

Left displacement sensor range and accuracy:range (0~20)mm,accuracy ±0.001mm

Right displacement sensor range and accuracy:range (0~20)mm,accuracy ±0.001mm

Basic configuration:uniaxial compression measuring device,bending measuring device,splitting fixture,stability holder

Servo motor power: 1.5kW

Test Lifting speed:  (1~50) mm /min

Quickly lifting speed: 50mm/min

Refrigeration compressor: AC(220~240)V 6.5A

Color touch screen size: 800×480mm

Heater power: AC220V,1.5kW

Environment box inner dimension: 650×340×400（mm）

Power supply:three phase（380±10%）V、3A、50Hz

Dimension: 750 mm×695 mm×1775mm（L×W×H）
