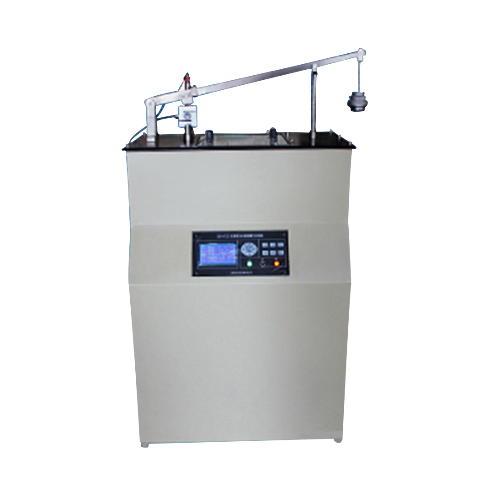

Samyon 0728 Bituminous Mixtures Bending Beam Rheometer (0~300 N)

1. Loading capacity：(0~300)N

2. Loading measuring error: ≤±0.1N

3. Measuring range：  0mm~20mm（mid-span deflection）

4. Measuring bias：   ≤±0.01mm

5. Temperature control range：   -2℃~60℃

6. Temperature control bias：   ≤±0.1℃

7. Motor power：    90W

8. Compressor power：  1kW

9. Heating power：   2kW

10. Pump power：   45W

11. Communication port：  RS232

12. Power supply：   AC（220±10%）V，50Hz

13. Total consumption power: 3.2kW

14.Outline dimension: 810mm×540mm×1300mm(L*W*H)

15.Net weight：   86kg
